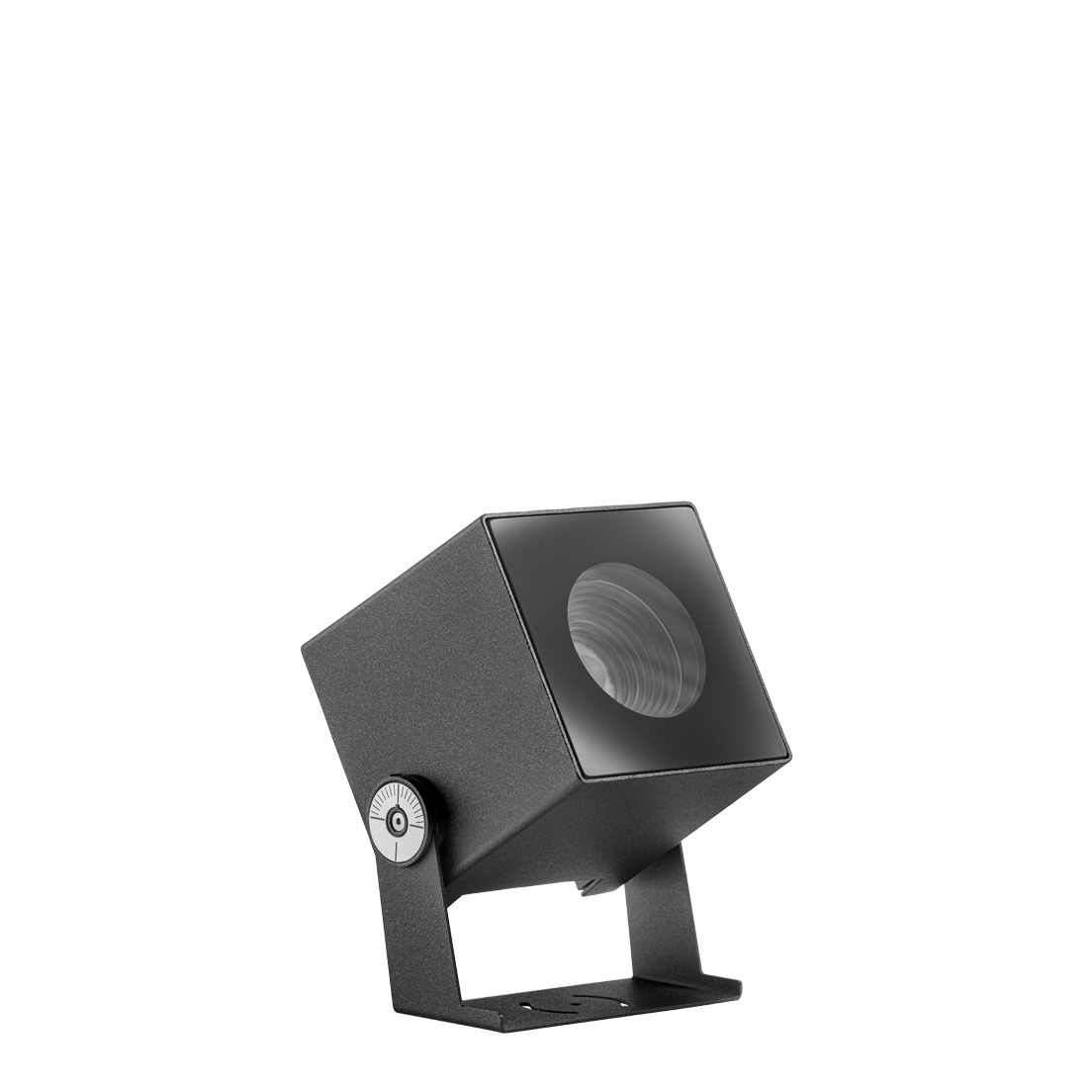

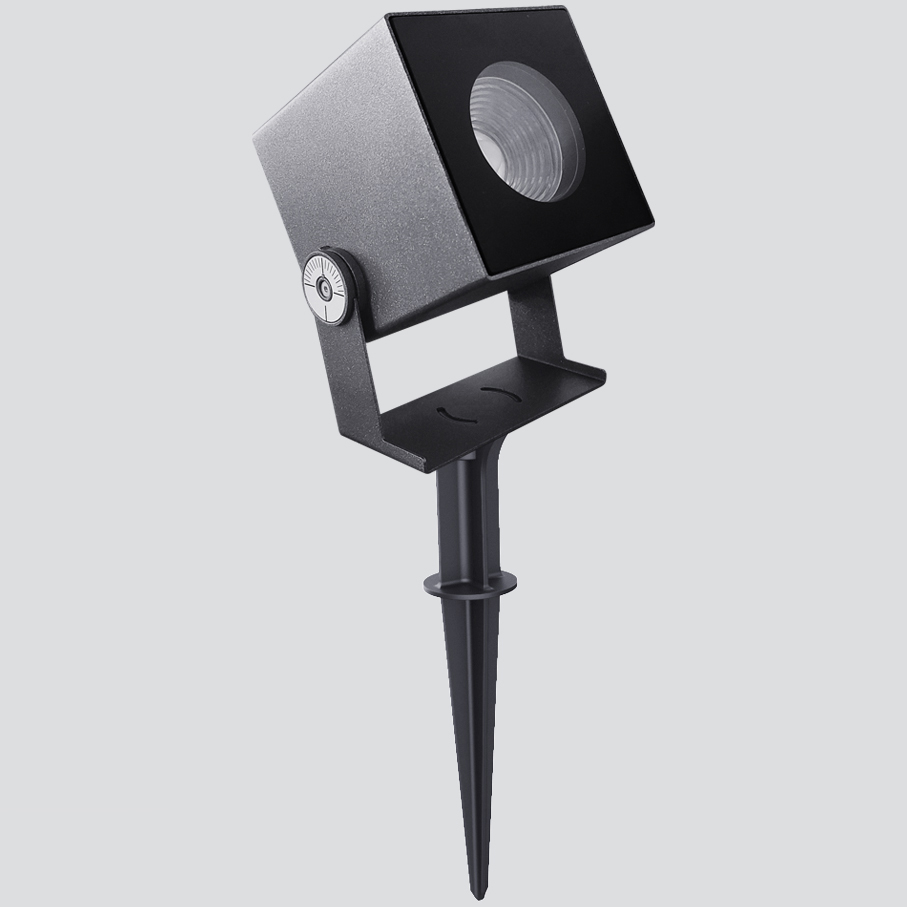

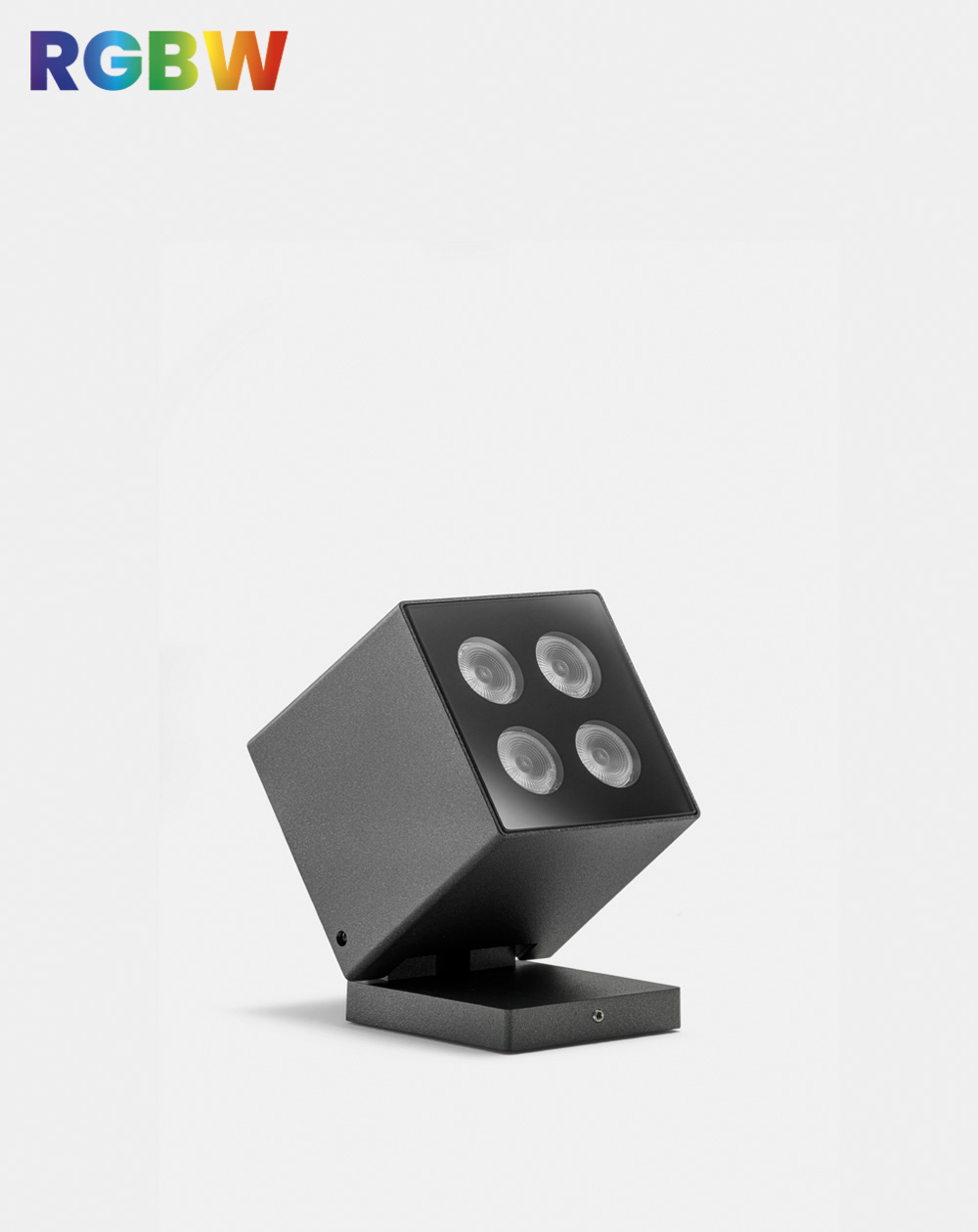

Luminaire réglable compact, adapté à une installation murale, au plafond et au sol, en tant que projecteur autonome ou à pointes. Equipé d'optiques secondaires pour différentes distributions lumineuses et d'un large choix d'accessoires utiles pour contrôler le flux lumineux et le confort visuel. L'appareil comprend l'utilisation de sources LED avec driver intégré avec sortie Dali fixe ou dimmable sur demande avec un supplément.
Type d'installation
Installation murale, plafond, fixation au sol
Corps
Aluminium moulé sous pression
Écran
Verre trempé extra-clair 4mm avec sérigraphie
Joints
Gomme EPDM à cellule fermée
Vis
Acier inoxydable A2
Peinture
Poudre de polyester stabilisée aux UV avec traitement anticorrosion
Dimmération
DALI disponible sur demande

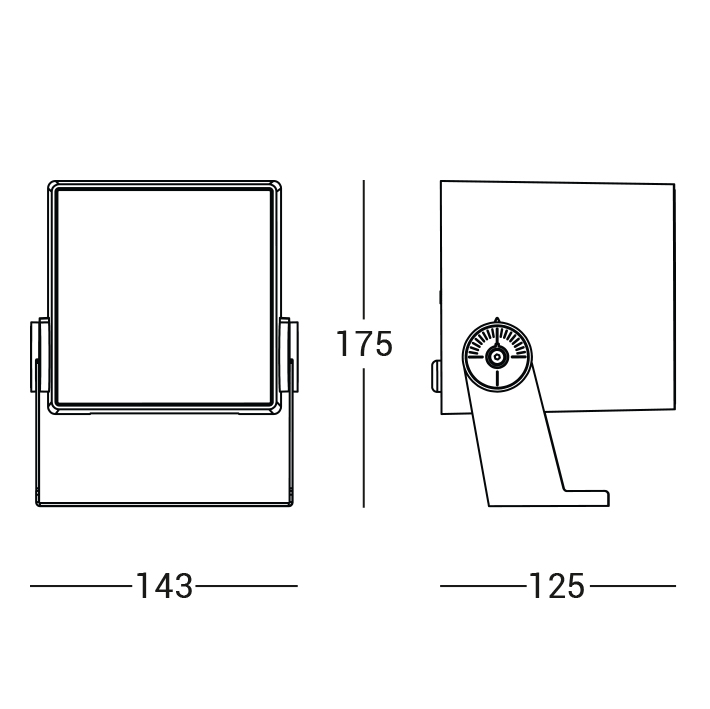

Code | Faisceau | Classe | IP | W | Source | Appareil | CCT LED |
---|---|---|---|---|---|---|---|

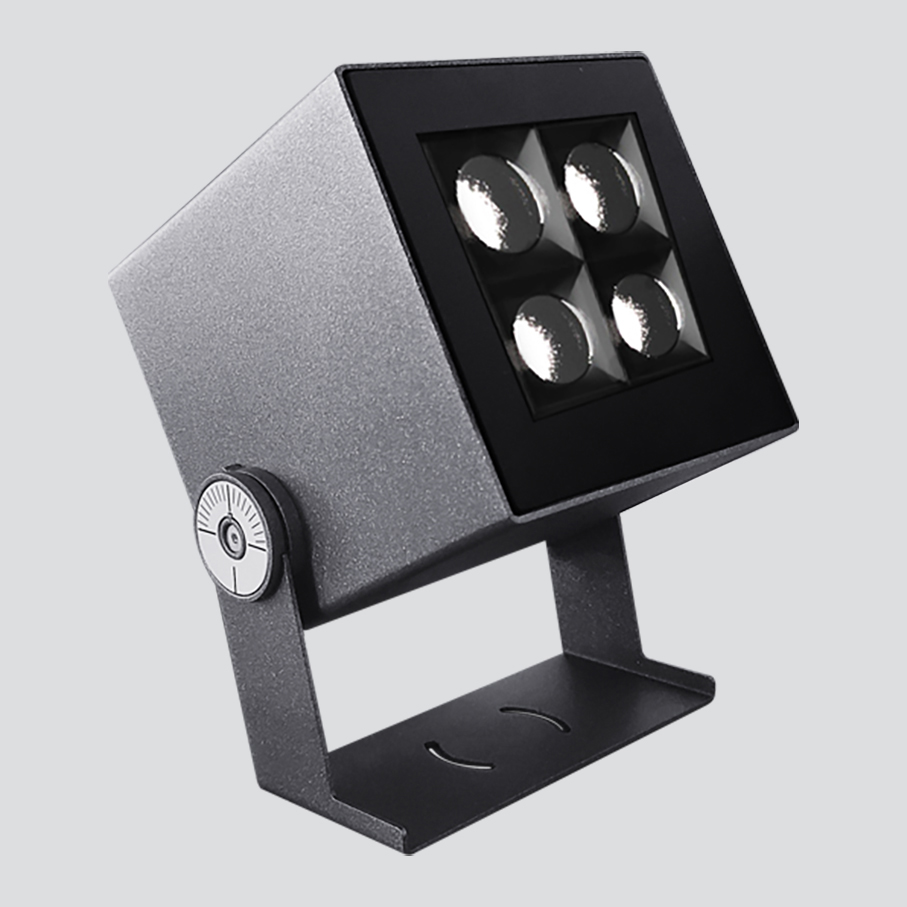

2113W/WC35NB | ![]() |
I | 66 | 14W | 1900 lm | 1382 lm | 3000K |
2113W/WC35MB | ![]() |
I | 66 | 14W | 1900 lm | 1382 lm | 3000K |
2113W/WC35WB | ![]() |
I | 66 | 14W | 1900 lm | 1382 lm | 3000K |
2113W/NC35NB | ![]() |
I | 66 | 14W | 1995 lm | 1458 lm | 4000K |
2113W/NC35MB | ![]() |
I | 66 | 14W | 1995 lm | 1458 lm | 4000K |
2113W/NC35WB | ![]() |
I | 66 | 14W | 1995 lm | 1458 lm | 4000K |

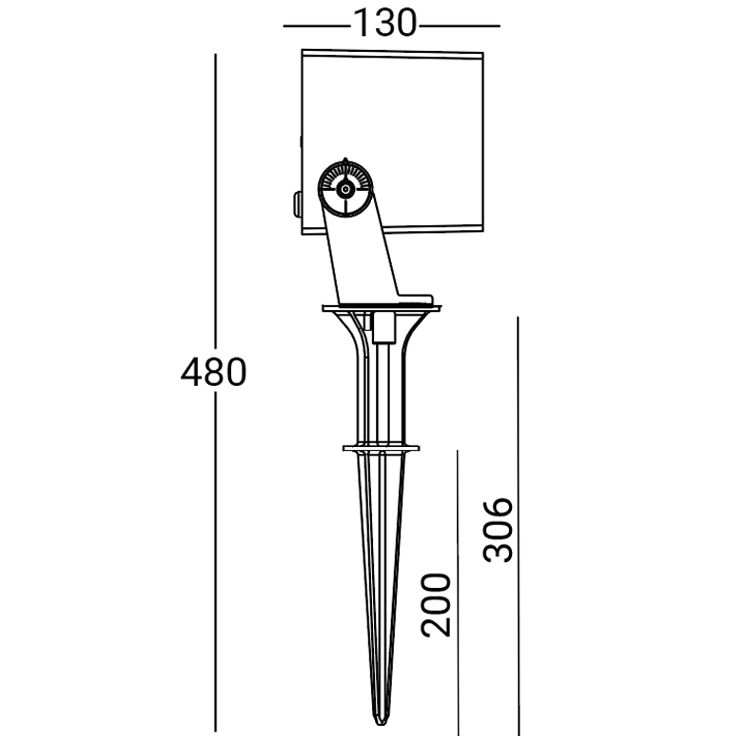

Code | Faisceau | Classe | IP | W | Source | Appareil | CCT LED |
---|---|---|---|---|---|---|---|

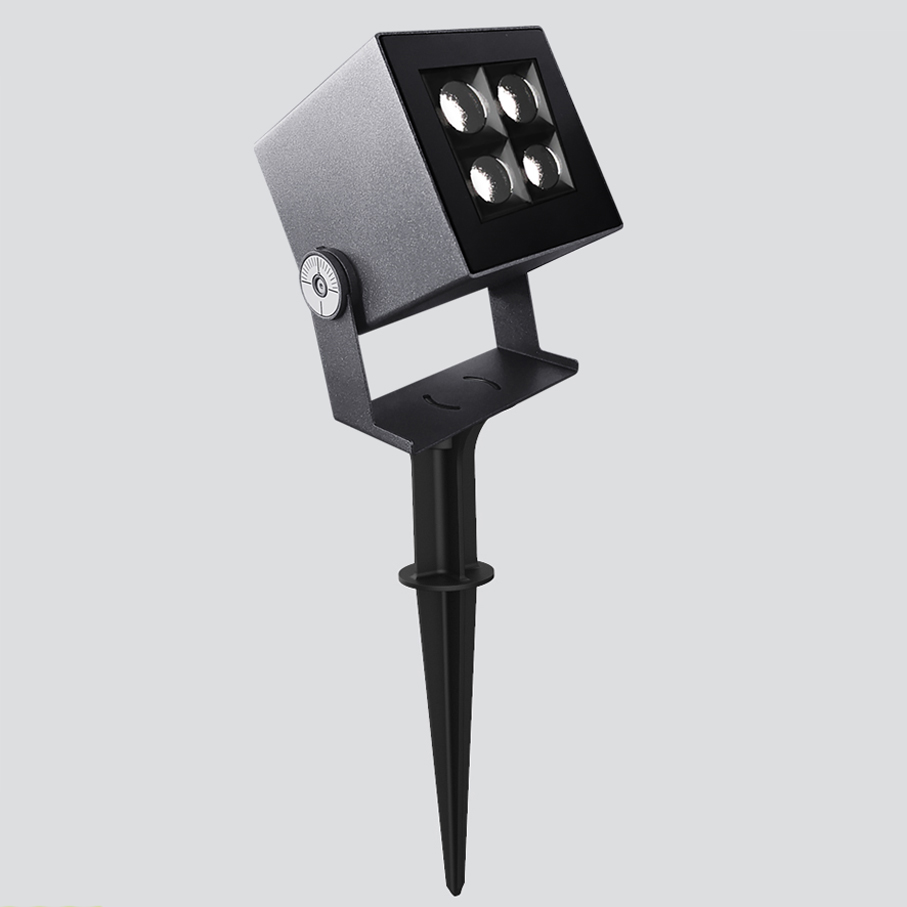

2113P/WC35NB | ![]() |
I | 66 | 14W | 1900 lm | 1382 lm | 3000K |
2113P/WC35MB | ![]() |
I | 66 | 14W | 1900 lm | 1382 lm | 3000K |
2113P/WC35WB | ![]() |
I | 66 | 14W | 1900 lm | 1382 lm | 3000K |
2113P/NC35NB | ![]() |
I | 66 | 14W | 1995 lm | 1458 lm | 4000K |
2113P/NC35MB | ![]() |
I | 66 | 14W | 1995 lm | 1458 lm | 4000K |
2113P/NC35WB | ![]() |
I | 66 | 14W | 1995 lm | 1458 lm | 4000K |
Code | Faisceau | Classe | IP | W | Source | Appareil | CCT LED |
---|---|---|---|---|---|---|---|
2113W/WR50NB | ![]() |
I | 66 | 14W | 1700 lm | 1190 lm | 3000K |
2113W/WR50MB | ![]() |
I | 66 | 14W | 1700 lm | 1190 lm | 3000K |
2113W/WR50WB | ![]() |
I | 66 | 14W | 1700 lm | 1190 lm | 3000K |
2113W/NR50NB | ![]() |
I | 66 | 14W | 1770 lm | 1240 lm | 4000K |
2113W/NR50MB | ![]() |
I | 66 | 14W | 1770 lm | 1240 lm | 4000K |
2113W/NR50WB | ![]() |
I | 66 | 14W | 1770 lm | 1240 lm | 4000K |
Code | Faisceau | Classe | IP | W | Source | Appareil | CCT LED |
---|---|---|---|---|---|---|---|
2113P/WR50NB | ![]() |
I | 66 | 14W | 1700 lm | 1190 lm | 3000K |
2113P/WR50MB | ![]() |
I | 66 | 14W | 1700 lm | 1190 lm | 3000K |
2113P/WR50WB | ![]() |
I | 66 | 14W | 1700 lm | 1190 lm | 3000K |
2113P/NR50NB | ![]() |
I | 66 | 14W | 1770 lm | 1240 lm | 4000K |
2113P/NR50MB | ![]() |
I | 66 | 14W | 1770 lm | 1240 lm | 4000K |
2113P/NR50WB | ![]() |
I | 66 | 14W | 1770 lm | 1240 lm | 4000K |
