Siluro Urban lighting

Pole characterised by a linear and sober design, available in four different heights: 2100 mm, 2600 mm, 3100 mm, 3600 mm. The diffuser in polycarbonate supplied standard can be either transparent or opal. Its capacity for 360° light diffusion makes Siluro an evolutionary, complete and extremely efficient product. Pole designed to offer lighting solutions not only for large spaces, but also for smaller residential areas guaranteeing luminous efficiency and minimum energy consumption. Dali dimmable on request with extra charge.

Installation tType
Ground installation

Body
Pole: Extruded aluminium alloy - Body/Base: Die-cast aluminium alloy

Seals
Closed-cell EPDM rubber

Screws
Stainless steel A2

Paint
Anti-corrosive UV stabilised polyester powder

Dimmer system
NA

Pole H.2100 with opal diffuser

Pole H.2100 with opal diffuser Siluro
Pole H.2100 with opal diffuser Siluro - Technical drawing
Code Beam Class IP W Source Fixture CCT LED
316-...OLD3 DIFFR360 Diffuse 360° I 65 38W 5000 lm 3820 lm 3000K
316-...OLD4 DIFFR360 Diffuse 360° I 65 38W 5200 lm 3880 lm 4000K

Pole H.2100 with louvres

Pole H.2100 with louvres Siluro
Pole H.2100 with louvres Siluro - Technical drawing
Code Beam Class IP W Source Fixture CCT LED
316-...LD3 DIFFR360 Shielded/Diffuse 360° I 65 38W 5000 lm 1750 lm 3000K
316-...LD4 DIFFR360 Shielded/Diffuse 360° I 65 38W 5200 lm 1900 lm 4000K

Pole H.2600 with opal diffuser

Pole H.2600 with opal diffuser Siluro
Pole H.2600 with opal diffuser Siluro - Technical drawing
Code Beam Class IP W Source Fixture CCT LED
317-...OLD3 DIFFR360 Diffuse 360° I 65 38W 5000 lm 3820 lm 3000K
317-...OLD4 DIFFR360 Diffuse 360° I 65 38W 5200 lm 3880 lm 4000K

Pole H.2600 with louvres

Pole H.2600 with louvres Siluro
Pole H.2600 with louvres Siluro - Technical drawing
Code Beam Class IP W Source Fixture CCT LED
317-...LD3 DIFFR360 Shielded/Diffuse 360° I 65 38W 5000 lm 1750 lm 3000K
317-...LD4 DIFFR360 Shielded/Diffuse 360° I 65 38W 5200 lm 1900 lm 4000K

Pole H.3100 with opal diffuser

Pole H.3100 with opal diffuser Siluro

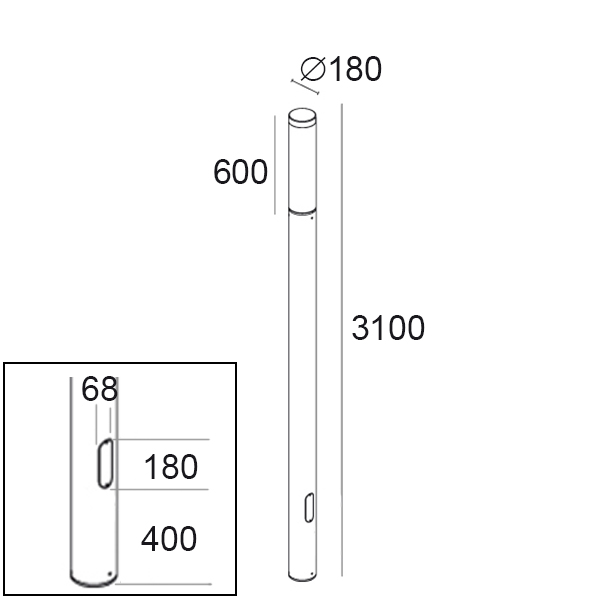

Pole H.3100 with opal diffuser Siluro - Technical drawing
Code Beam Class IP W Source Fixture CCT LED
318-...OLD3 DIFFR360 Diffuse 360° I 65 38W 5000 lm 3820 lm 3000K
318-...OLD4 DIFFR360 Diffuse 360° I 65 38W 5200 lm 3880 lm 4000K

Pole H.3100 with louvres

Pole H.3100 with louvres Siluro
Pole H.3100 with louvres Siluro - Technical drawing
Code Beam Class IP W Source Fixture CCT LED
318-...LD3 DIFFR360 Shielded/Diffuse 360° I 65 38W 5000 lm 1750 lm 3000K
318-...LD4 DIFFR360 Shielded/Diffuse 360° I 65 38W 5200 lm 1900 lm 4000K

Pole H.3600 with opal diffuser

Pole H.3600 with opal diffuser Siluro

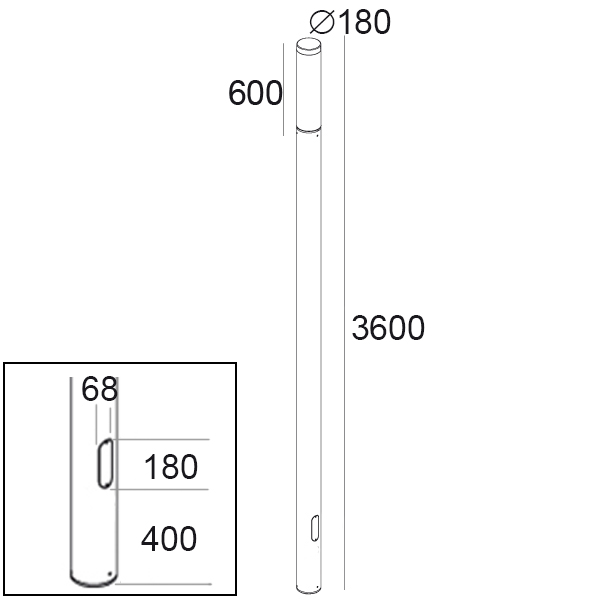

Pole H.3600 with opal diffuser Siluro - Technical drawing
Code Beam Class IP W Source Fixture CCT LED
319-...OLD3 DIFFR360 Diffuse 360° I 65 38W 5000 lm 3820 lm 3000K
319-...OLD4 DIFFR360 Diffuse 360° I 65 38W 5200 lm 3880 lm 4000K

Pole H.3600 with louvres

Pole H.3600 with louvres Siluro
Pole H.3600 with louvres Siluro - Technical drawing
Code Beam Class IP W Source Fixture CCT LED
319-...LD3 DIFFR360 Shielded/Diffuse 360° I 65 38W 5000 lm 1750 lm 3000K
319-...LD4 DIFFR360 Shielded/Diffuse 360° I 65 38W 5200 lm 1900 lm 4000K

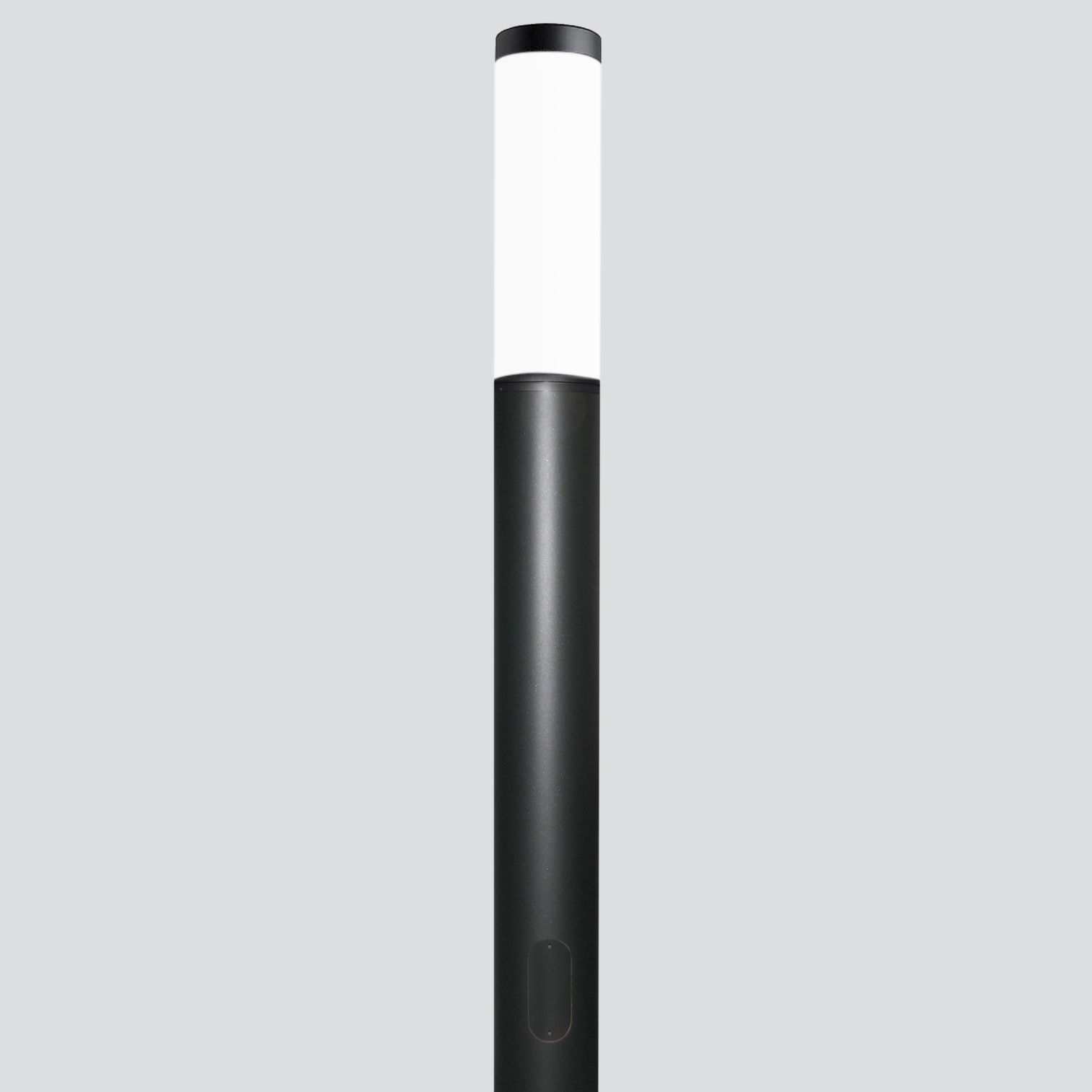

Pole H.4100 with opal diffuser

Pole H.4100 with opal diffuser Siluro

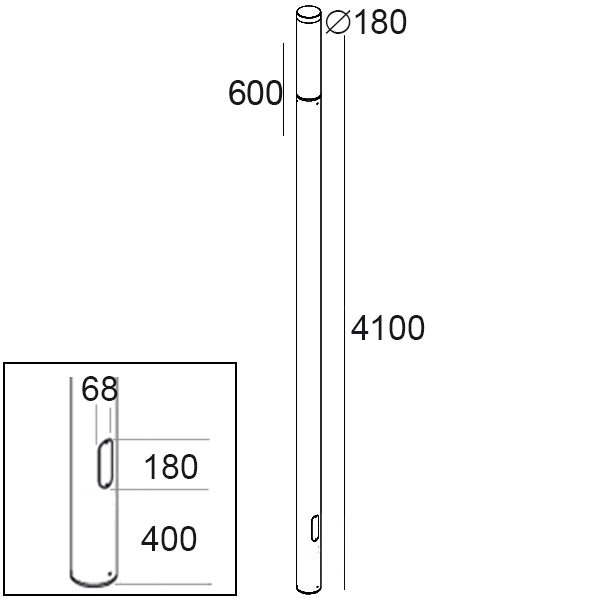

Pole H.4100 with opal diffuser Siluro - Technical drawing
Code Beam Class IP W Source Fixture CCT LED
315-...OLD3 DIFFR360 Diffuse 360° I 65 38W 5000 lm 3820 lm 3000K
315-...OLD4 DIFFR360 Diffuse 360° I 65 38W 5200 lm 3880 lm 4000K

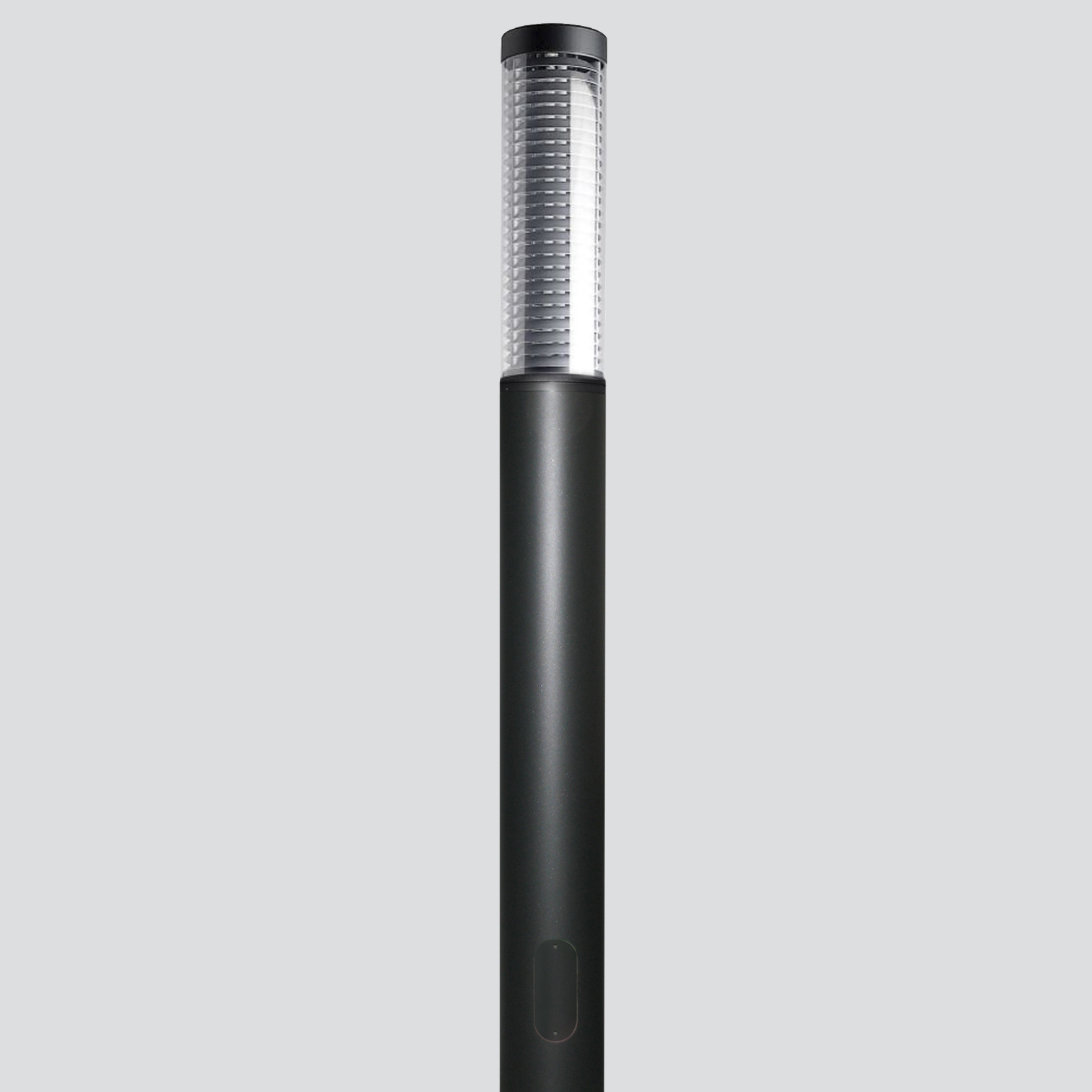

Pole H.4100 with louvres

Pole H.4100 with louvres Siluro
Pole H.4100 with louvres Siluro - Technical drawing
Code Beam Class IP W Source Fixture CCT LED
315-...LD3 DIFFR360 Shielded/Diffuse 360° I 65 38W 5000 lm 1750 lm 3000K
315-...LD4 DIFFR360 Shielded/Diffuse 360° I 65 38W 5200 lm 1900 lm 4000K
