Rim 70 Ceiling Painted
Share:

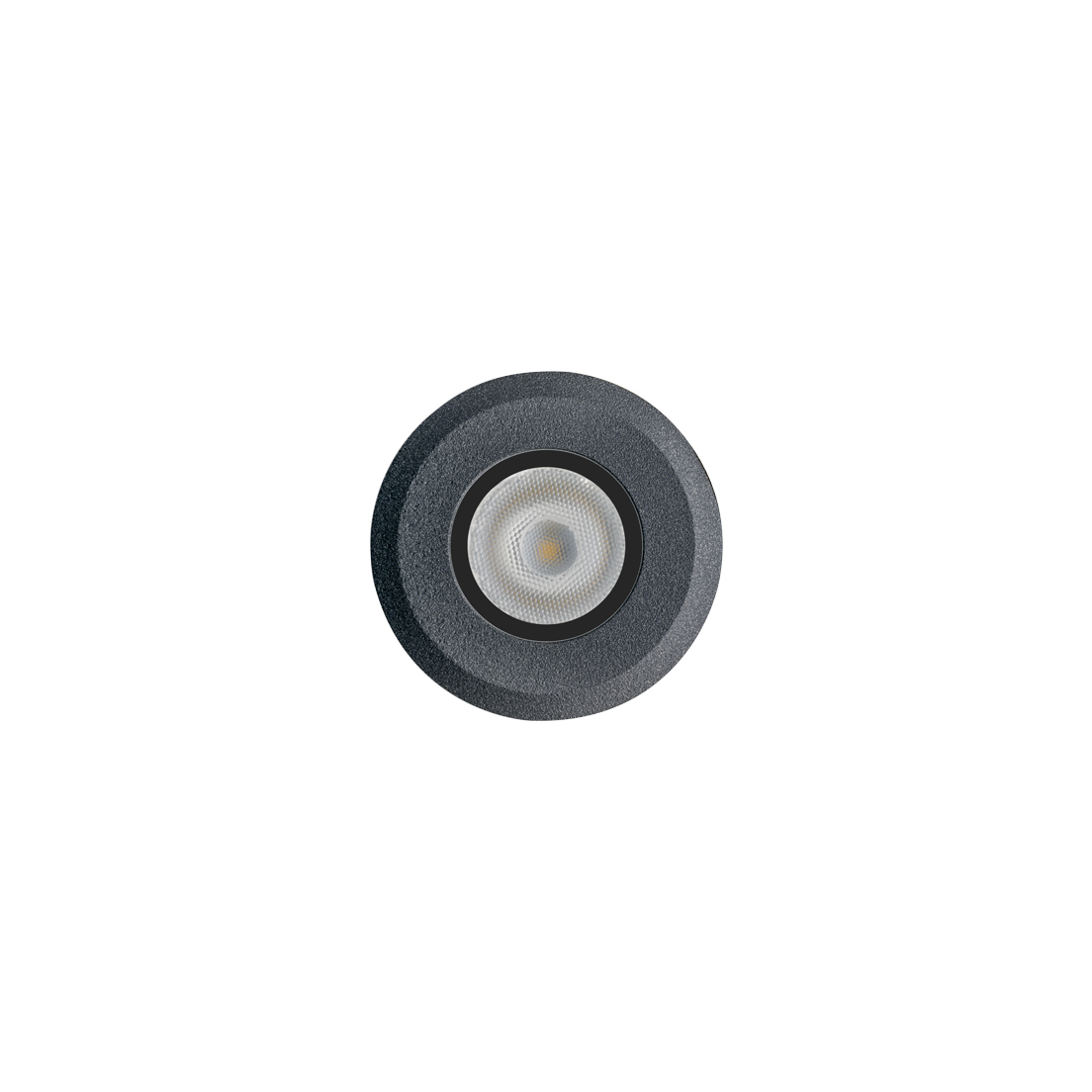

Rim 70 Ceiling Painted Recessed with Ø70 painted steel ring

Rim, the latest addition to the Augenti collection, is a small but performing recessed fixture with painted steel ring, proposed with diameters of 45 mm and 70 mm. The reduced sizes and the easy and quick installation allow its positioning in external and internal areas. In fact, Rim can be installed on floor, wall or ceiling, turning almost invisible, but insuring the created light and atmosphere to be the real main characters of the scene. The proposed beams are suitable for smooth or highlighted effects, for single or in-series installations. The ring of 316L stainless steel and the system AcquaStop for the anti-condensation protection make Rim a safe and multipurpose product, ideal to give light to your fantasy.

Installation tType
Ceiling installation

Body
Anticorodal turning aluminum 6000 Serie, for greater corrosion resistance

Box
Ploypropylene (PP)30% fiber UVStabilized GWT750

Frame
Painted Steel AISI316L

Screen
Transparent extra-clear glass 8mm

Seals
Closed-cell EPDM rubber

Paint
Anti-corrosive UV stabilised polyester powder

Dimmer system
Not dimmable

Optik distribution
PMMA Lens

Recessed with painted steel ferrule Ø70 -Remote driver 24Vdc

Recessed with painted steel ferrule Ø70 -Remote driver 24Vdc Rim 70 Ceiling Painted
Recessed with painted steel ferrule Ø70 -Remote driver 24Vdc Rim 70 Ceiling Painted
Recessed with painted steel ferrule Ø70 -Remote driver 24Vdc Rim 70 Ceiling Painted - Technical drawing
Code Beam Class IP W Source Fixture CCT LED
3070C/WRRCNB NB-SU Spot/12° III 67 6W 690 lm 520 lm 3000K
3070C/WRRCMB MB-SU Flood/24° III 67 6W 690 lm 510 lm 3000K
3070C/WRRCWB WB-SU Wide Flood/36° III 67 6W 690 lm 505 lm 3000K
3070C/WRRCSW SW-SU Super Wide/50° III 67 6W 690 lm 508 lm 3000K
3070C/WRRCOB OB-SU Oval/15°x55° III 67 6W 690 lm 554 lm 3000K
3070C/WRRCVS VS-SU Diffuse/120° III 67 6W 690 lm 70 lm 3000K
3070C/NRRCNB NB-SU Spot/12° III 67 6W 750 lm 550 lm 4000K
3070C/NRRCMB MB-SU Flood/24° III 67 6W 750 lm 540 lm 4000K
3070C/NRRCWB WB-SU Wide Flood/36° III 67 6W 750 lm 535 lm 4000K
3070C/NRRCSW SW-SU Super Wide/50° III 67 6W 750 lm 534 lm 4000K
3070C/NRRCOB OB-SU Oval/15°x55° III 67 6W 750 lm 602 lm 4000K
3070C/NRRCVS VS-SU Diffuse/120° III 67 6W 750 lm 78 lm 4000K

Recessed with painted steel ferrule Ø70 -Remote driver max 500mA DC

Recessed with painted steel ferrule Ø70 -Remote driver max 500mA DC Rim 70 Ceiling Painted
Recessed with painted steel ferrule Ø70 -Remote driver max 500mA DC Rim 70 Ceiling Painted
Recessed with painted steel ferrule Ø70 -Remote driver max 500mA DC Rim 70 Ceiling Painted - Technical drawing
Code Beam Class IP W Source Fixture CCT LED
3070C/WRCCNB NB-SU Spot/12° III 67 6W 690 lm 520 lm 3000K
3070C/WRCCMB MB-SU Flood/24° III 67 6W 690 lm 510 lm 3000K
3070C/WRCCWB WB-SU Wide Flood/36° III 67 6W 690 lm 505 lm 3000K
3070C/WRCCSW SW-SU Super Wide/50° III 67 6W 690 lm 508 lm 3000K
3070C/WRCCOB OB-SU Oval/15°x55° III 67 6W 690 lm 554 lm 3000K
3070C/WRCCVS VS-SU Diffuse/120° III 67 6W 690 lm 70 lm 3000K
3070C/NRCCNB NB-SU Spot/12° III 67 6W 750 lm 550 lm 4000K
3070C/NRCCMB MB-SU Flood/24° III 67 6W 750 lm 540 lm 4000K
3070C/NRCCWB WB-SU Wide Flood/36° III 67 6W 750 lm 535 lm 4000K
3070C/NRCCSW SW-SU Super Wide/50° III 67 6W 750 lm 534 lm 4000K
3070C/NRCCOB OB-SU Oval/15°x55° III 67 6W 750 lm 602 lm 4000K
3070C/NRCCVS VS-SU Diffuse/120° III 67 6W 750 lm 78 lm 4000K
