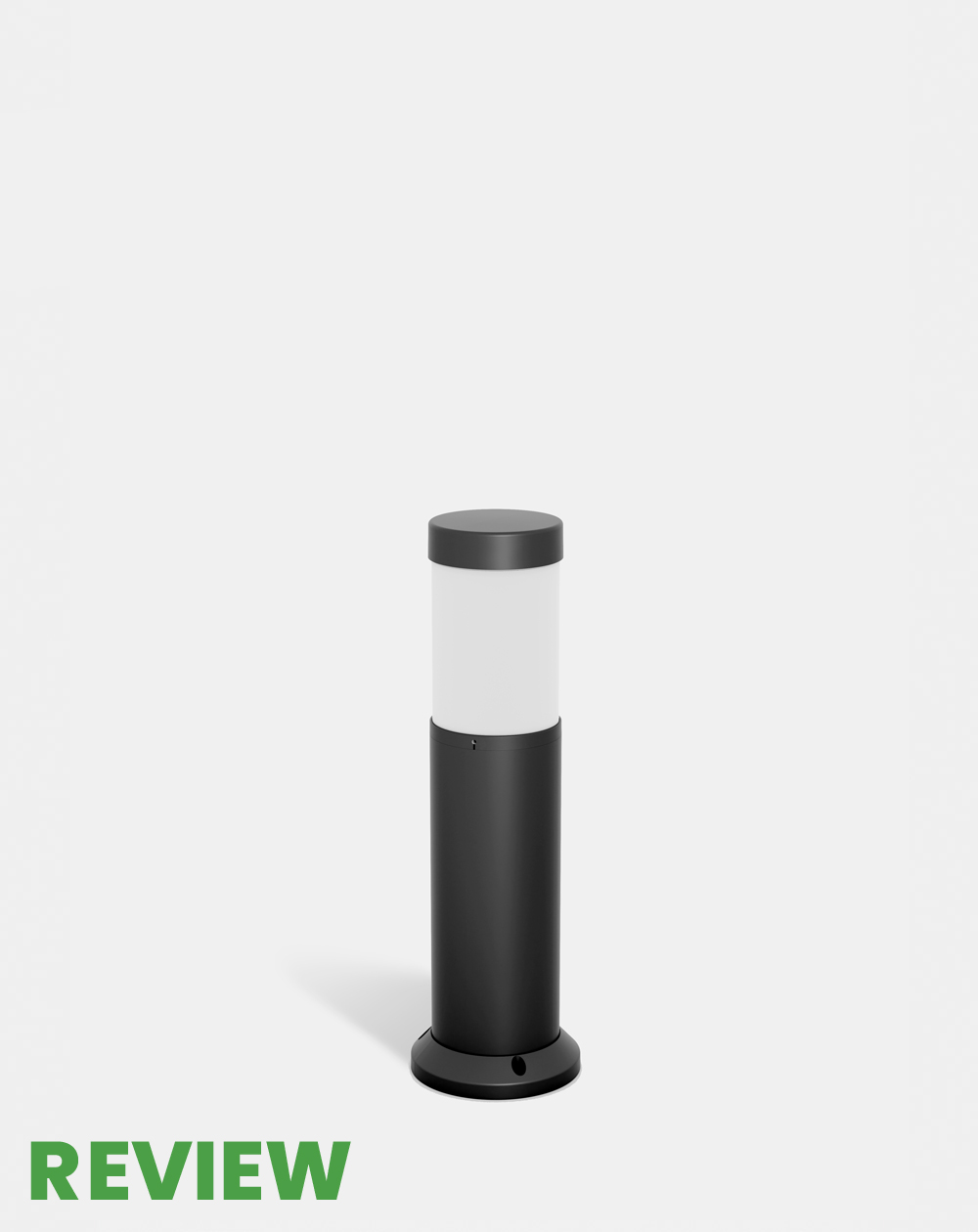

Nova Column Bollards luminaire

Nova is designed specifically for the residential lighting of paths, gardens, avenues, respecting the regulations on light pollution through the use of 360 ° refractive or radial optics that guarantee a mainly direct emission towards the ground. The structure is supplied with a high-strength technopolymer flange that allows installation in complete safety even on surfaces extremely subject to the presence of water. In addition, the addition of metal anchors makes the anchoring stable even in substrates that are not completely stable. The three available heights guarantee a high flexibility of application according to the needs. The lamp body is firmly connected to the pole by means of a bayonet coupling which makes it easily removable during normal maintenance operations. The device includes the use of LED sources with built-in driver with fixed or dimmable Dali output on request with extra charge.

Installation tType
Ground installation

Body
Pole: Extruded aluminium alloy - Body/Base: Die-cast aluminium alloy

Screen
Transparent Polycarbonate

Seals
Closed-cell EPDM rubber

Screws
Stainless steel A2

Paint
Anti-corrosive UV stabilised polyester powder

Dimmer system
NA

Bollard H.460 with louvres

Bollard H.460 with louvres Nova
Bollard H.460 with louvres Nova - Technical drawing
Code Beam Class IP W Source Fixture CCT LED
410F0/WR8.PT DIFFR360 Shielded/Diffuse 360° II 65 20W 2840 lm 1150 lm 3000K
410F0/NR8.PT DIFFR360 Shielded/Diffuse 360° II 65 20W 2976 lm 1209 lm 4000K

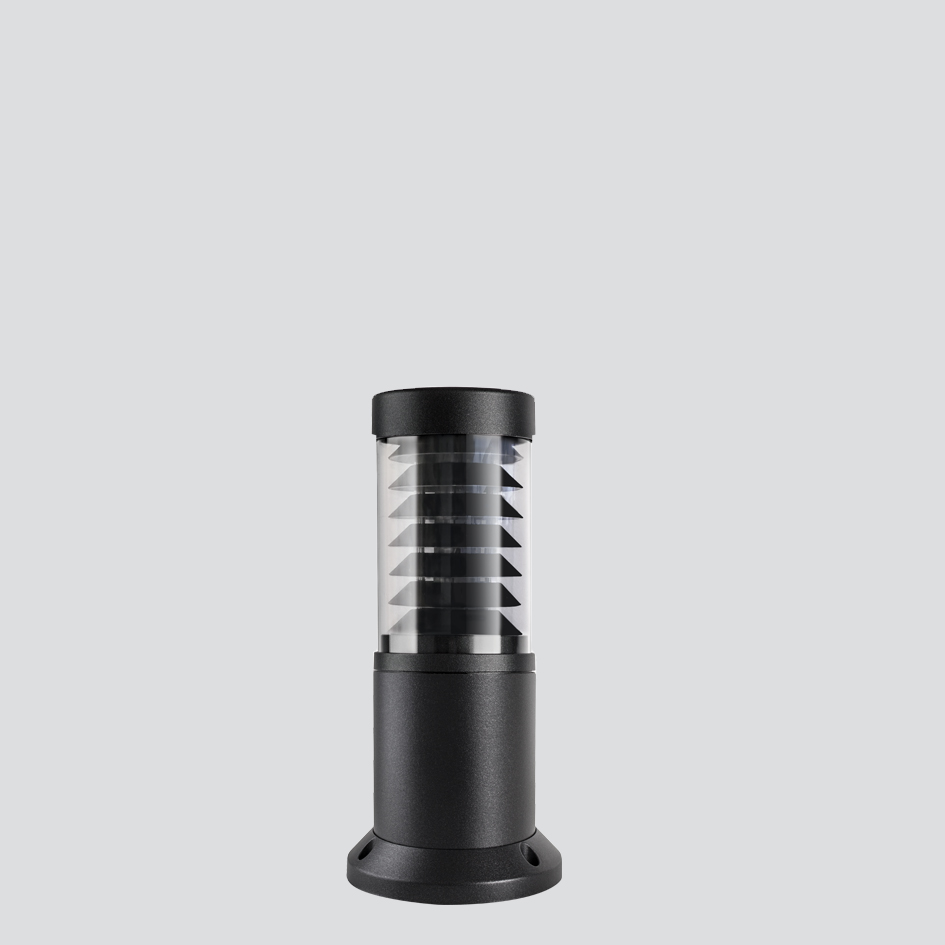

Bollard H.460 with antipollution louvres

Bollard H.460 with antipollution louvres Nova
Bollard H.460 with antipollution louvres Nova - Technical drawing
Code Beam Class IP W Source Fixture CCT LED
410F0/WR8.X3 DIFFR360 Shielded Louvre 360° II 65 20W 2840 lm 537 lm 3000K
410F0/NR8.X3 DIFFR360 Shielded Louvre 360° II 65 20W 2976 lm 565 lm 4000K

Bollard H.660 with louvres

Bollard H.660 with louvres Nova
Bollard H.660 with louvres Nova - Technical drawing
Code Beam Class IP W Source Fixture CCT LED
410F1/WR8.PT DIFFR360 Shielded/Diffuse 360° II 65 20W 2840 lm 1150 lm 3000K
410F1/NR8.PT DIFFR360 Shielded/Diffuse 360° II 65 20W 2976 lm 1209 lm 4000K

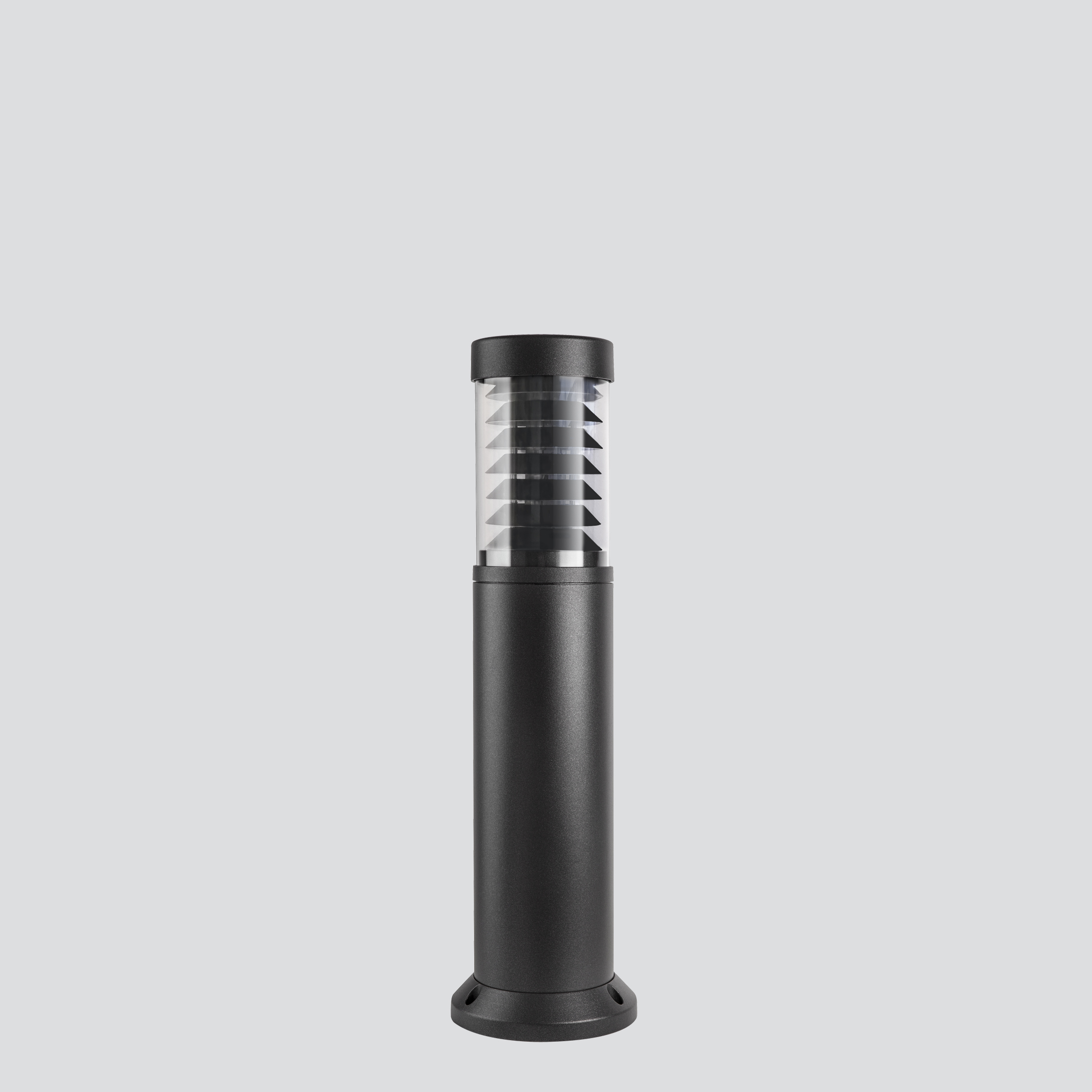

Bollard H.660 with antipollution louvres

Bollard H.660 with antipollution louvres Nova
Bollard H.660 with antipollution louvres Nova - Technical drawing
Code Beam Class IP W Source Fixture CCT LED
410F1/WR8.X3 DIFFR360 Shielded Louvre 360° II 65 20W 2840 lm 537 lm 3000K
410F1/NR8.X3 DIFFR360 Shielded Louvre 360° II 65 20W 2976 lm 565 lm 4000K

Bollard H.1060 with louvres

Bollard H.1060 with louvres Nova
Bollard H.1060 with louvres Nova - Technical drawing
Code Beam Class IP W Source Fixture CCT LED
410F2/WR8.PT DIFFR360 Shielded/Diffuse 360° II 65 20W 2840 lm 1150 lm 3000K
410F2/NR8.PT DIFFR360 Shielded/Diffuse 360° II 65 20W 2976 lm 1209 lm 4000K

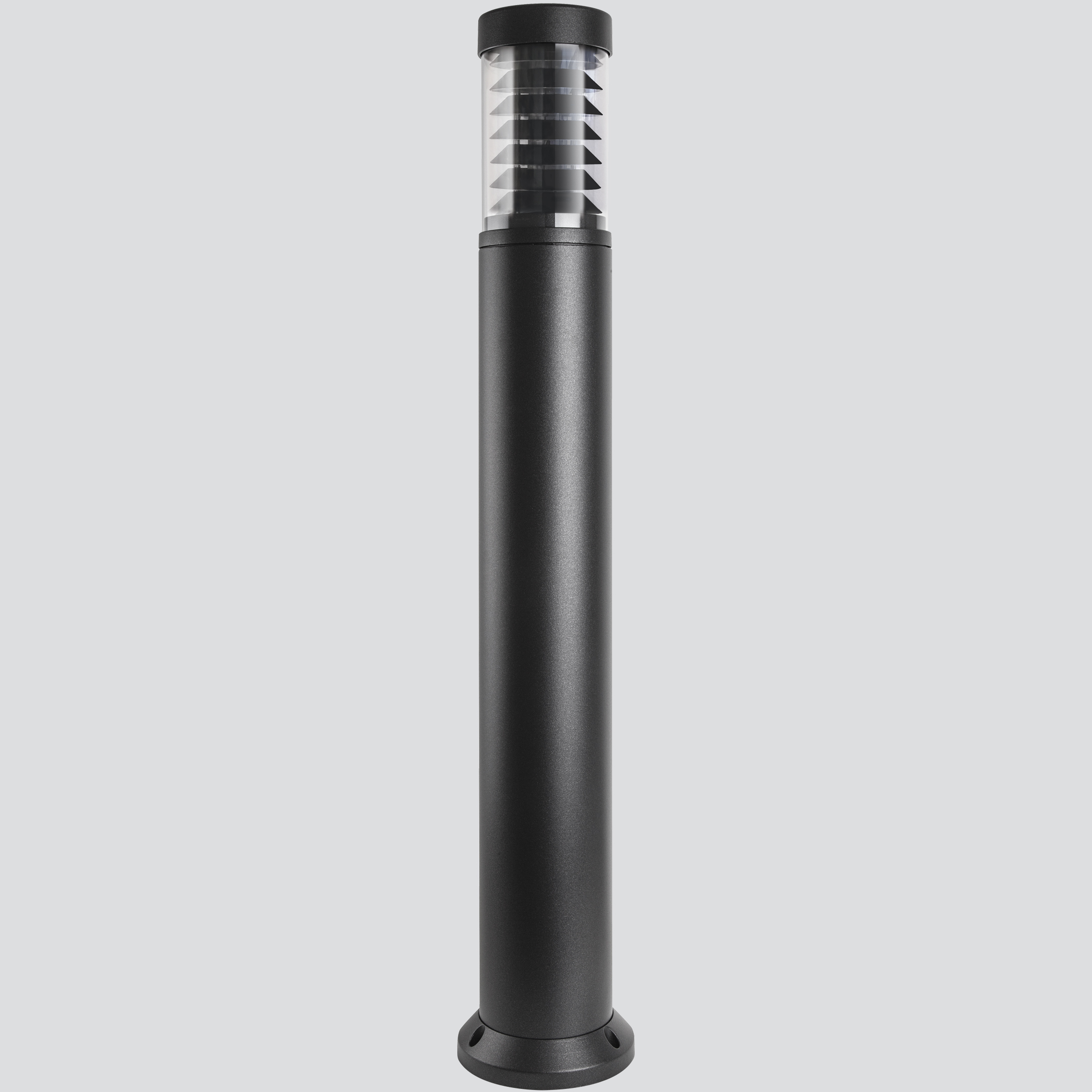

Bollard H.1060 with antipollution louvres

Bollard H.1060 with antipollution louvres Nova
Bollard H.1060 with antipollution louvres Nova - Technical drawing
Code Beam Class IP W Source Fixture CCT LED
410F2/WR8.X3 DIFFR360 Shielded Louvre 360° II 65 20W 2840 lm 537 lm 3000K
410F2/NR8.X3 DIFFR360 Shielded Louvre 360° II 65 20W 2976 lm 565 lm 4000K
