Naos400 Column Bollards luminaire

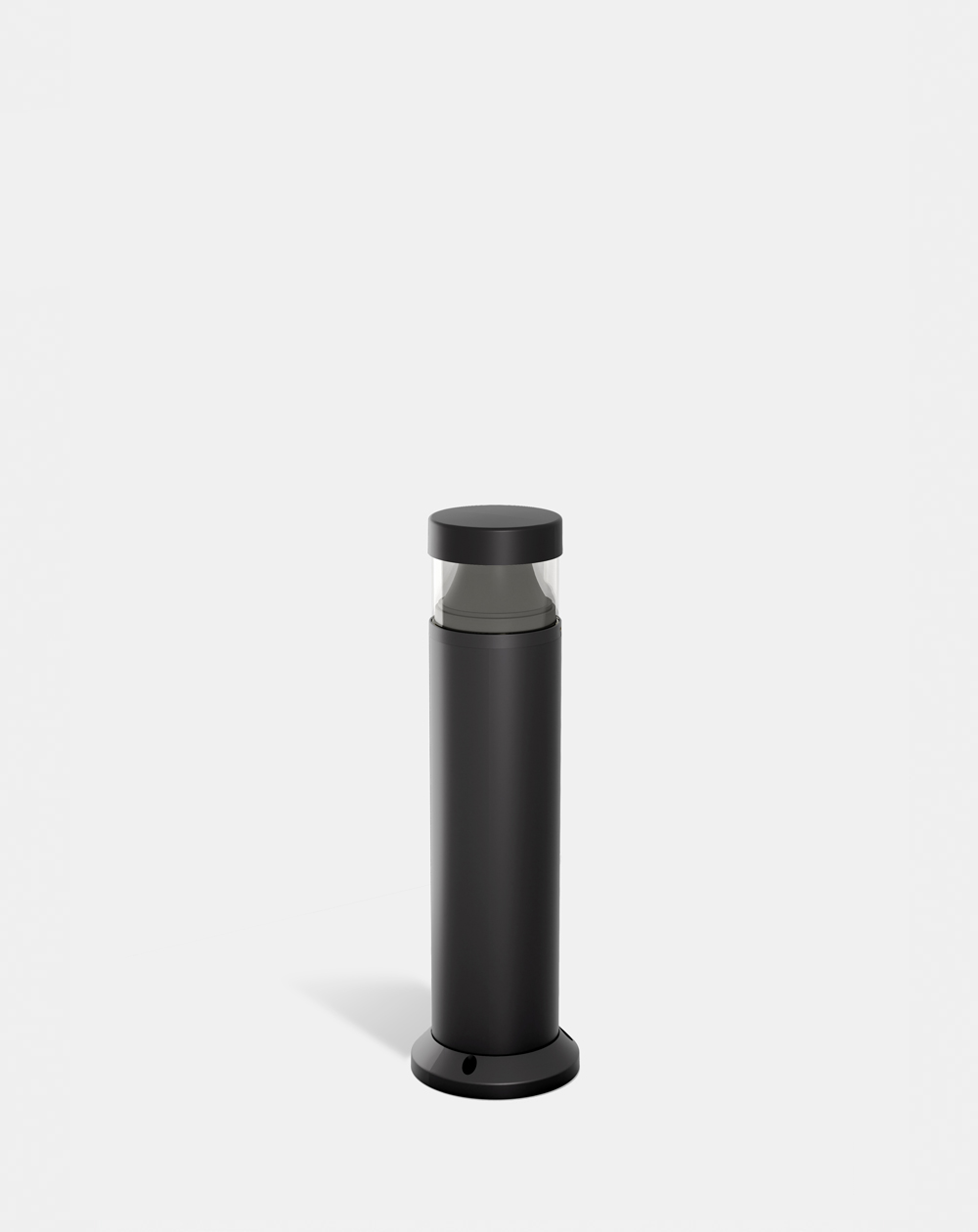

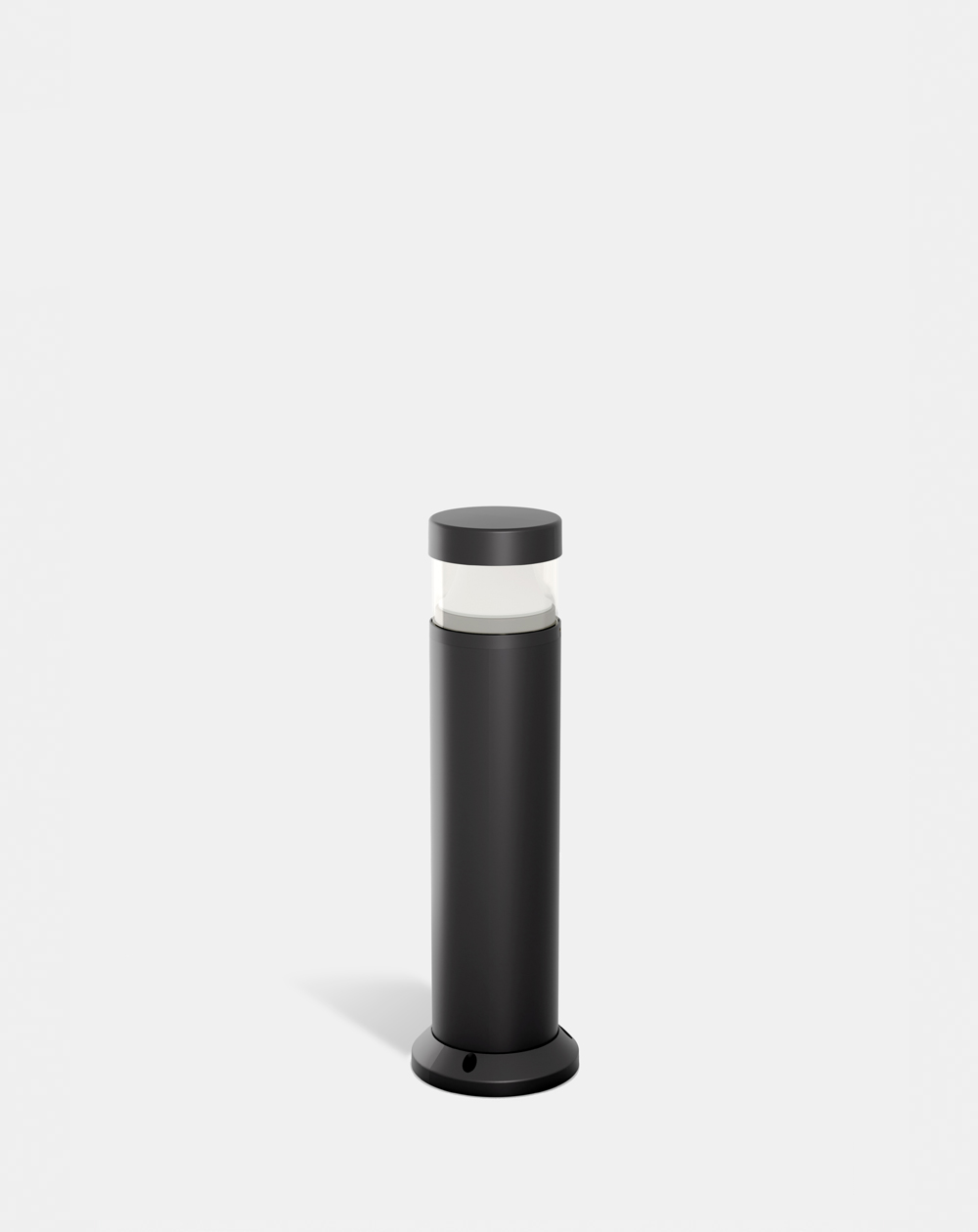

Naos has been developed to cover various residential lighting needs for paths, gardens and avenues. This new bollard is presented with two different optics, the first, with a white diffuser (Naos400), designed to satisfy the need for more lux. The second version (Naos401), on the other hand, with a black reflector, guarantees anti-glare and exceeds all anti-light pollution regulations. Both versions are proposed with powers of 14W and 20W.

Installation tType
Ground installation

Body
Pole: Extruded aluminium alloy - Body/Base: Die-cast aluminium alloy

Screen
Transparent Polycarbonate

Seals
Closed-cell EPDM rubber

Screws
Stainless steel A2

Paint
Anti-corrosive UV stabilised polyester powder

Dimmer system
NA

Cablaggio
Included

Optik distribution
White reflector

Download BrochureNew Naos_2022

Bollard H.350 Diffuse Emission

Bollard H.350 Diffuse Emission Naos400
Bollard H.350 Diffuse Emission Naos400 - Technical drawing
Code Beam Class IP W Source Fixture CCT LED
400F0/WR35.PT DIFFR360 Indirect/Diffuse 360° II 65 14W 1900 lm 980 lm 3000K
400F0/NR35.PT DIFFR360 Indirect/Diffuse 360° II 65 14W 2000 lm 1030 lm 4000K
400F0/WR50.PT DIFFR360 Indirect/Diffuse 360° II 65 20W 2700 lm 1400 lm 3000K
400F0/NR50.PT DIFFR360 Indirect/Diffuse 360° II 65 20W 2835 lm 1462 lm 4000K

Bollard H.600 Diffuse Emission

Bollard H.600 Diffuse Emission Naos400
Bollard H.600 Diffuse Emission Naos400 - Technical drawing
Code Beam Class IP W Source Fixture CCT LED
400F1/WR35.PT DIFFR360 Indirect/Diffuse 360° II 65 14W 1900 lm 980 lm 3000K
400F1/NR35.PT DIFFR360 Indirect/Diffuse 360° II 65 14W 2000 lm 1030 lm 4000K
400F1/WR50.PT DIFFR360 Indirect/Diffuse 360° II 65 20W 2700 lm 1400 lm 3000K
400F1/NR50.PT DIFFR360 Indirect/Diffuse 360° II 65 20W 2835 lm 1462 lm 4000K

Bollard H.1000 Diffuse Emission

Bollard H.1000 Diffuse Emission Naos400
Bollard H.1000 Diffuse Emission Naos400 - Technical drawing
Code Beam Class IP W Source Fixture CCT LED
400F2/WR35.PT DIFFR360 Indirect/Diffuse 360° II 65 14W 1900 lm 980 lm 3000K
400F2/NR35.PT DIFFR360 Indirect/Diffuse 360° II 65 14W 2000 lm 1030 lm 4000K
400F2/WR50.PT DIFFR360 Indirect/Diffuse 360° II 65 20W 2700 lm 1400 lm 3000K
400F2/NR50.PT DIFFR360 Indirect/Diffuse 360° II 65 20W 2835 lm 1462 lm 4000K
