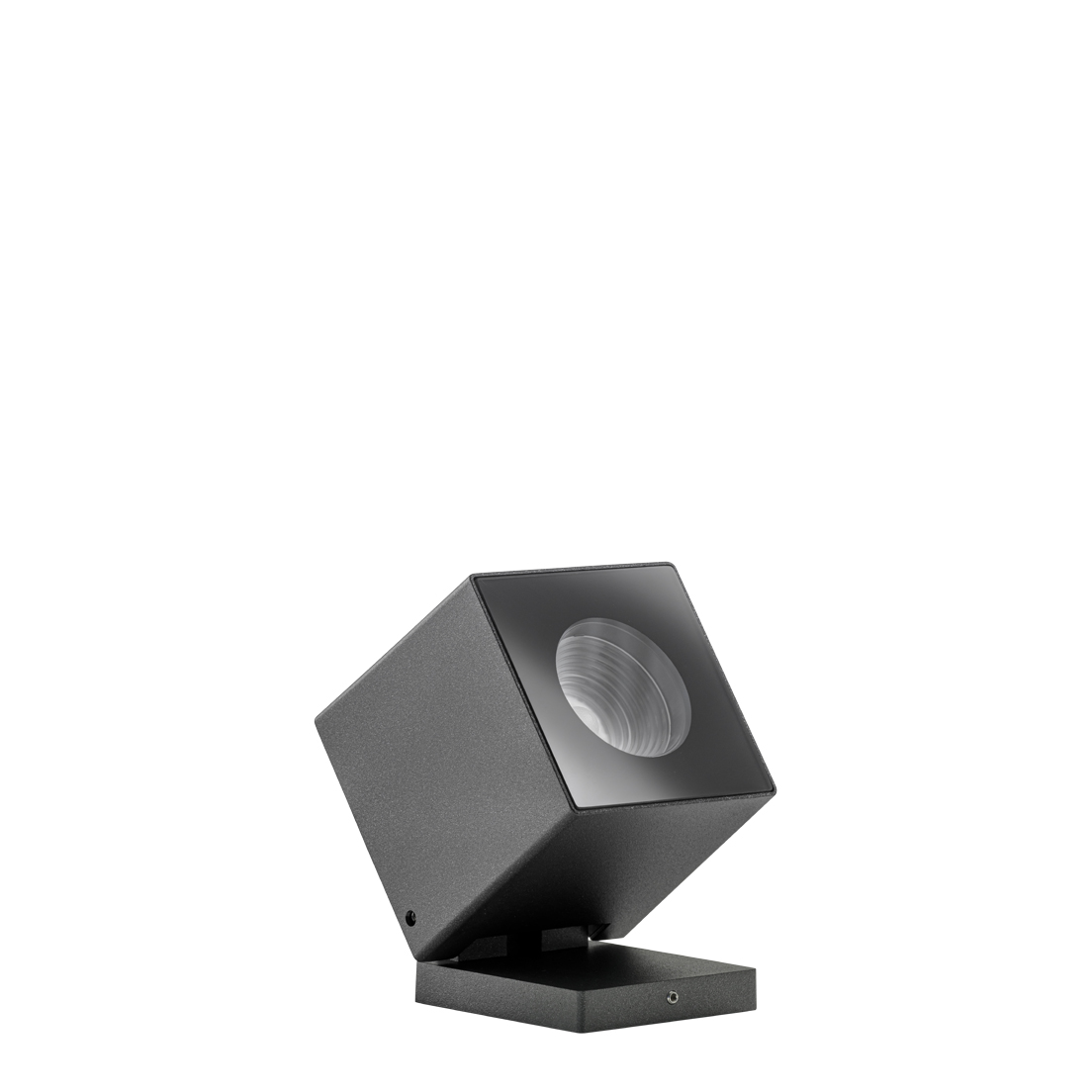

Kubo12-B Adjustable Projector
Compact adjustable luminaire, suitable for wall or ceiling installation. Equipped with secondary optics for different light distributions and a wide choice of accessories useful for controlling the luminous flux and visual comfort. The fixture foresees the use of LED sources with integrated or remote 24Vdc driver.
Installation tType
Wall, ceiling and stand installation
Body
Die-cast aluminium
Screen
Tempered extra-clear glass 4mm with silk-screen printing
Seals
Closed-cell EPDM rubber
Screws
Stainless steel A2
Paint
Anti-corrosive UV stabilised polyester powder
Dimmer system
DALI available on request
Adjustable Projector -Built-in driver
| Code | Beam | Class | IP | W | Source | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|
| 2112W/WC35.NB |  Adjustable Floodlight Spot/10° |
I | 66 | 14W | 1586 lm | 1440 lm | 3000K |
| 2112W/WC35.MB |  Adjustable Floodlight Flood/38° |
I | 66 | 14W | 1586 lm | 1446 lm | 3000K |
| 2112W/WC35.WB |  Adjustable Floodlight Wide Flood/56° |
I | 66 | 14W | 1586 lm | 1332 lm | 3000K |
| 2112W/NC35.NB | Adjustable Floodlight Spot/10° |
I | 66 | 14W | 1650 lm | 1498 lm | 4000K |
| 2112W/NC35.MB | Adjustable Floodlight Flood/38° |
I | 66 | 14W | 1650 lm | 1504 lm | 4000K |
| 2112W/NC35.WB | Adjustable Floodlight Wide Flood/56° |
I | 66 | 14W | 1650 lm | 1386 lm | 4000K |

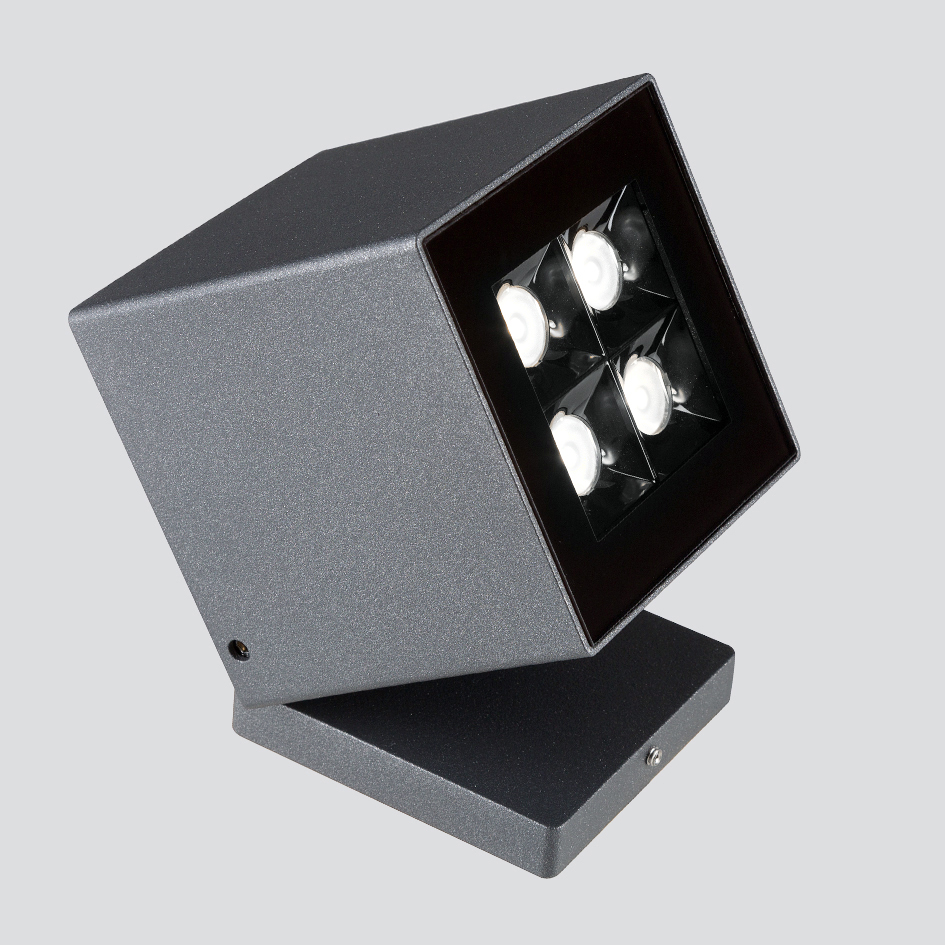

Adjustable Projector LED ARRAY-Built-in driver
| Code | Beam | Class | IP | W | Source | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|
| 2112W/WR50.NB | Adjustable Floodlight Spot/20° |
I | 66 | 14W | 1700 lm | 1190 lm | 3000K |
| 2112W/WR50.MB | Adjustable Floodlight Flood/32° |
I | 66 | 14W | 1700 lm | 1190 lm | 3000K |
| 2112W/WR50.WB | Adjustable Floodlight Wide Flood/50° |
I | 66 | 14W | 1700 lm | 1190 lm | 3000K |
| 2112W/NR50.NB | Adjustable Floodlight Spot/20° |
I | 66 | 14W | 1770 lm | 1240 lm | 4000K |
| 2112W/NR50.MB | Adjustable Floodlight Flood/32° |
I | 66 | 14W | 1770 lm | 1240 lm | 4000K |
| 2112W/NR50.WB | Adjustable Floodlight Wide Flood/50° |
I | 66 | 14W | 1770 lm | 1240 lm | 4000K |
