Altair Round Wall or ceiling light fixture

Ceiling light for wall- or ceiling-mounted installation, available in two sizes with white opal diffuser for greater uniformity of the luminous flux. Independent wall-mounting bracket.

Installation tType
Recessed wall fixing and ceiling installation

Body
Die-cast aluminium

Frame
Die-cast aluminium

Screen
Extra-clear float glass 4mm with white diffusing silk-screen printing

Seals
Closed-cell EPDM rubber

Screws
Stainless steel A2

Paint
Anti-corrosive UV stabilised polyester powder

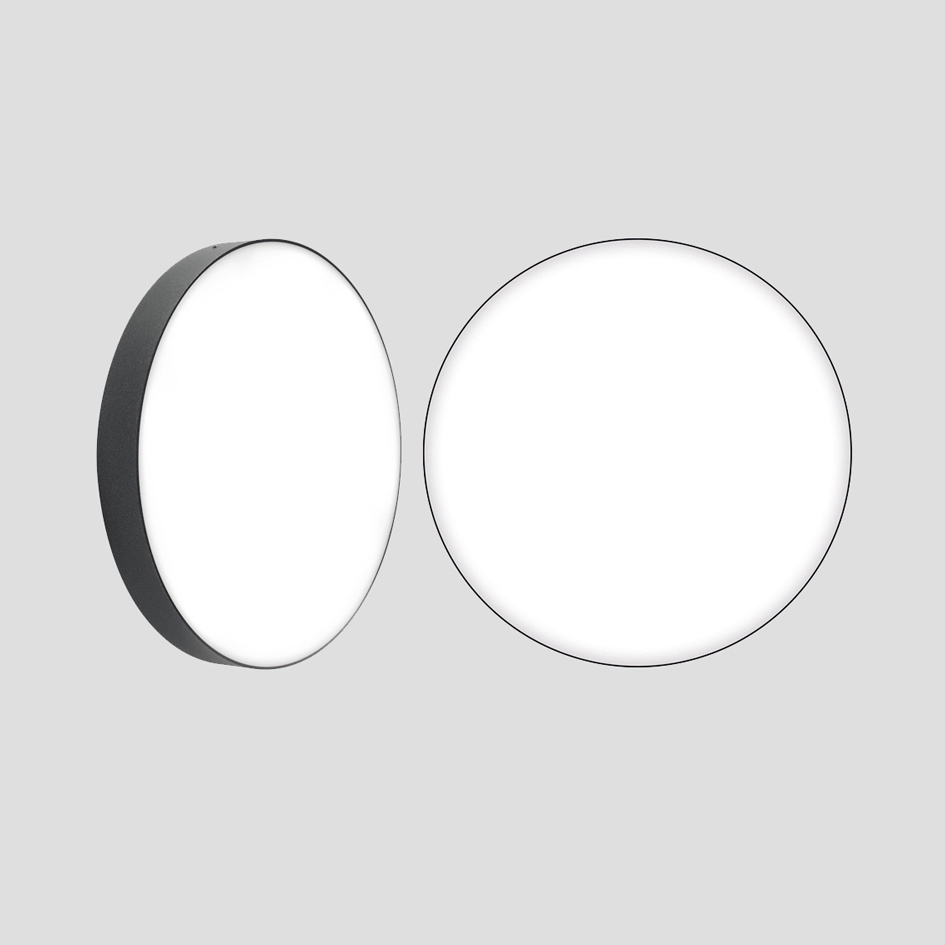

Wall Ceiling Ø200 W.35 Diffuse Emission -LED DIRECT AC-

Wall Ceiling Ø200 W.35 Diffuse Emission -LED DIRECT AC- Altair Round

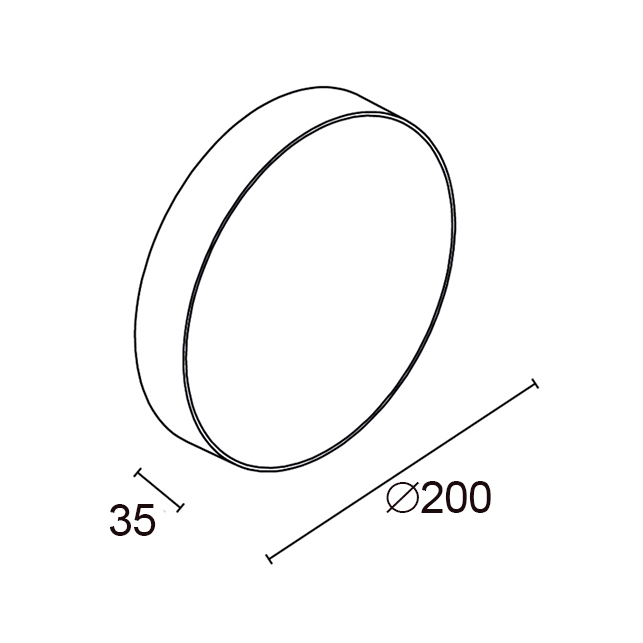

Wall Ceiling Ø200 W.35 Diffuse Emission -LED DIRECT AC- Altair Round - Technical drawing
Code Beam Class IP W Source Fixture CCT LED
8401C/WRACVO DIFFP360 Diffuse >110° I 65 10W 950 lm 470 lm 3000K
8401C/NRACVO DIFFP360 Diffuse >110° I 65 10W 1000 lm 495 lm 4000K

Wall Ceiling Ø280 W.35 Diffuse Emission -LED DIRECT AC-

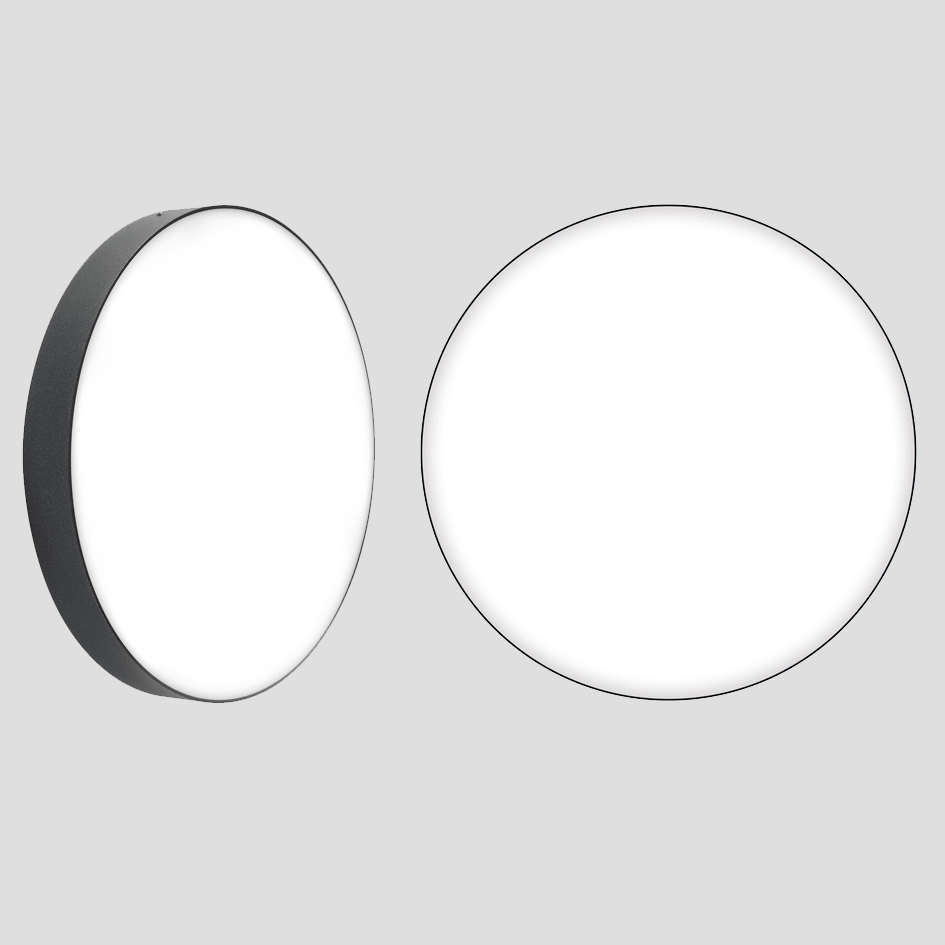

Wall Ceiling Ø280 W.35 Diffuse Emission -LED DIRECT AC- Altair Round

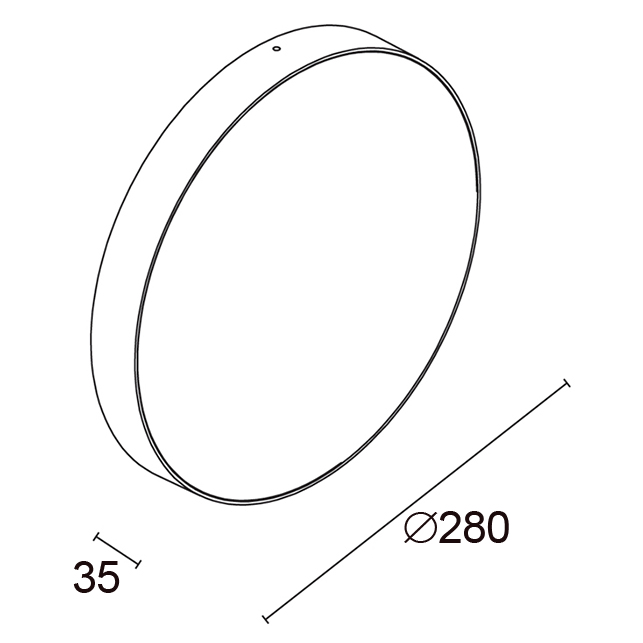

Wall Ceiling Ø280 W.35 Diffuse Emission -LED DIRECT AC- Altair Round - Technical drawing
Code Beam Class IP W Source Fixture CCT LED
8400C/WRACVO DIFFP360 Diffuse >110° I 65 21W 1970 lm 975 lm 3000K
8400C/NRACVO DIFFP360 Diffuse >110° I 65 21W 2080 lm 1030 lm 4000K

Wall Ceiling Ø280 W.65 Diffuse Emission

Wall Ceiling Ø280 W.65 Diffuse Emission Altair Round
Wall Ceiling Ø280 W.65 Diffuse Emission Altair Round - Technical drawing
Code Beam Class IP W Source Fixture CCT LED
8402C/WR35VO DIFFP360 Diffuse >110° II 65 21W 2130 lm 1045 lm 3000K
8402C/NR35VO DIFFP360 Diffuse >110° II 65 21W 2250 lm 1105 lm 4000K

Wall Ceiling Ø280 W.65 Diffuse Emission -WITH EMERGENCY-

Wall Ceiling Ø280 W.65 Diffuse Emission -WITH EMERGENCY- Altair Round
Wall Ceiling Ø280 W.65 Diffuse Emission -WITH EMERGENCY- Altair Round - Technical drawing
Code Beam Class IP W Source Fixture CCT LED
8402C/WE35VO DIFFP360 Diffuse >110° I 65 21W 2130 lm 1045 lm 3000K
8402C/NE35VO DIFFP360 Diffuse >110° I 65 21W 2250 lm 1105 lm 4000K
