Plain Architectural recessed lights

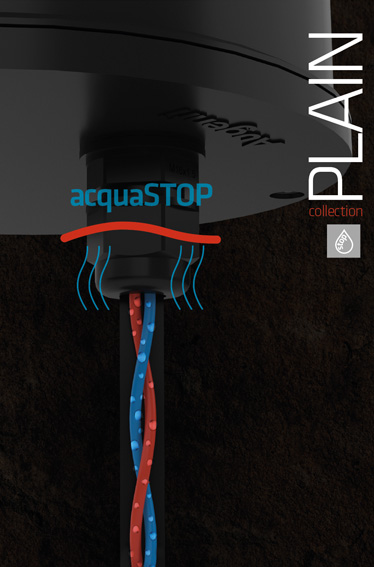

We have designed Plain starting from essential key-points: quick and safe installation, high dissipation, anti-condensation protection, easy and fast maintenance. The technical expedients of the ?xture allow the installation and the usage of Plain in different projects and in total security, granting suitability, adaptability and long lasting thanks to the structure and the used materials. Moreover, the mixing and the cleaning of the lighting beams, obtained through a careful choice of the optics, give to Plain the de?nitive elements to be a product widely placeable and highly performing.
Installation Type
Inground Recessed

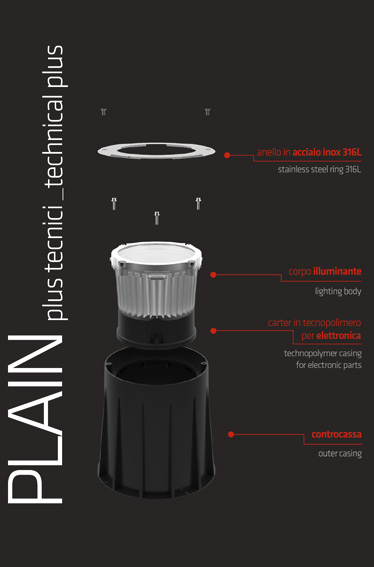

Body

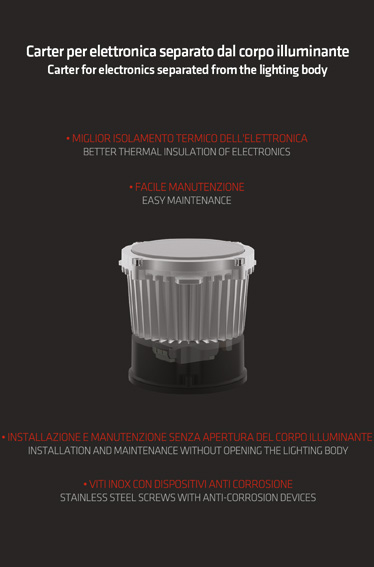

Lighting body: Die-cast aluminum - Electronics housing: Polyamide
Box
Ploypropylene (PP)30% fiber UVStabilized GWT750
Frame
Stainless Steel AISI316L
Screen
Transparent extra-clear glass 15mm
Seals
Expanded silicone - moulded silicone
Screws
Stainless steel with anti-corrosion devices
Optik distribution
PMMA Lens
Download BrochurePlain News 2024

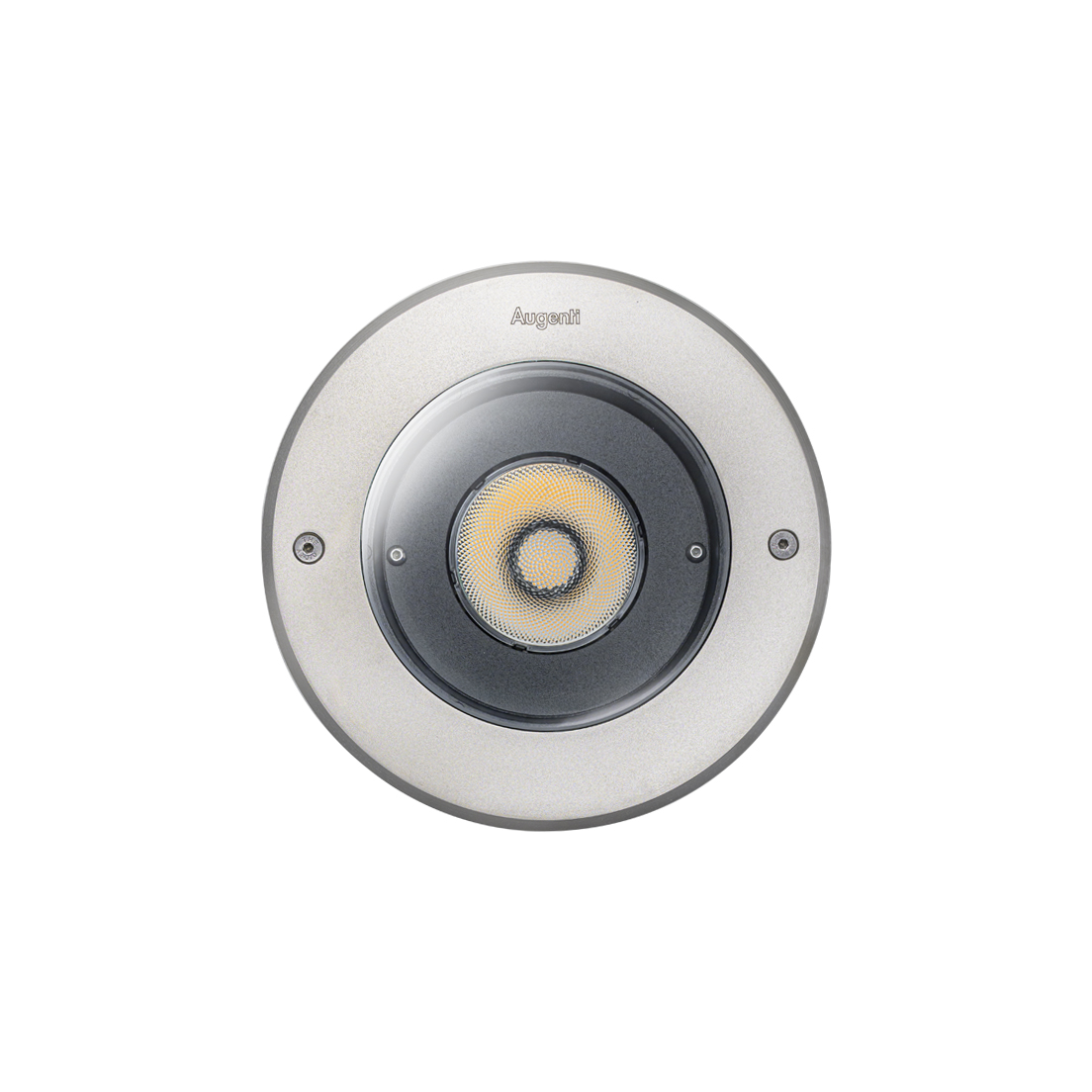

Recessed spotlight Carriegeable Ø200 - Built-in driver
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 3200R/HC50NB99 |  Spot/15° |
II | 67 | 20W | 220-240Vac 50/60Hz | ON/OFF | 1805 lm | 2700K |
| 3200R/HC50MB99 |  Flood/25° |
II | 67 | 20W | 220-240Vac 50/60Hz | ON/OFF | 1843 lm | 2700K |
| 3200R/HC50WB99 |  Wide Flood/36° |
II | 67 | 20W | 220-240Vac 50/60Hz | ON/OFF | 1900 lm | 2700K |
| 3200R/HC50SW99 |  Super Wide/60° |
II | 67 | 20W | 220-240Vac 50/60Hz | ON/OFF | 1900 lm | 2700K |
| 3200R/WC50NB99 | Spot/15° |
II | 67 | 20W | 220-240Vac 50/60Hz | ON/OFF | 1900 lm | 3000K |
| 3200R/WC50MB99 | Flood/25° |
II | 67 | 20W | 220-240Vac 50/60Hz | ON/OFF | 1940 lm | 3000K |
| 3200R/WC50WB99 | Wide Flood/36° |
II | 67 | 20W | 220-240Vac 50/60Hz | ON/OFF | 2000 lm | 3000K |
| 3200R/WC50SW99 | Super Wide/60° |
II | 67 | 20W | 220-240Vac 50/60Hz | ON/OFF | 2000 lm | 3000K |
| 3200R/NC50NB99 | Spot/15° |
II | 67 | 20W | 220-240Vac 50/60Hz | ON/OFF | 2000 lm | 4000K |
| 3200R/NC50MB99 | Flood/25° |
II | 67 | 20W | 220-240Vac 50/60Hz | ON/OFF | 2040 lm | 4000K |
| 3200R/NC50WB99 | Wide Flood/36° |
II | 67 | 20W | 220-240Vac 50/60Hz | ON/OFF | 2100 lm | 4000K |
| 3200R/NC50SW99 | Super Wide/60° |
II | 67 | 20W | 220-240Vac 50/60Hz | ON/OFF | 2100 lm | 4000K |

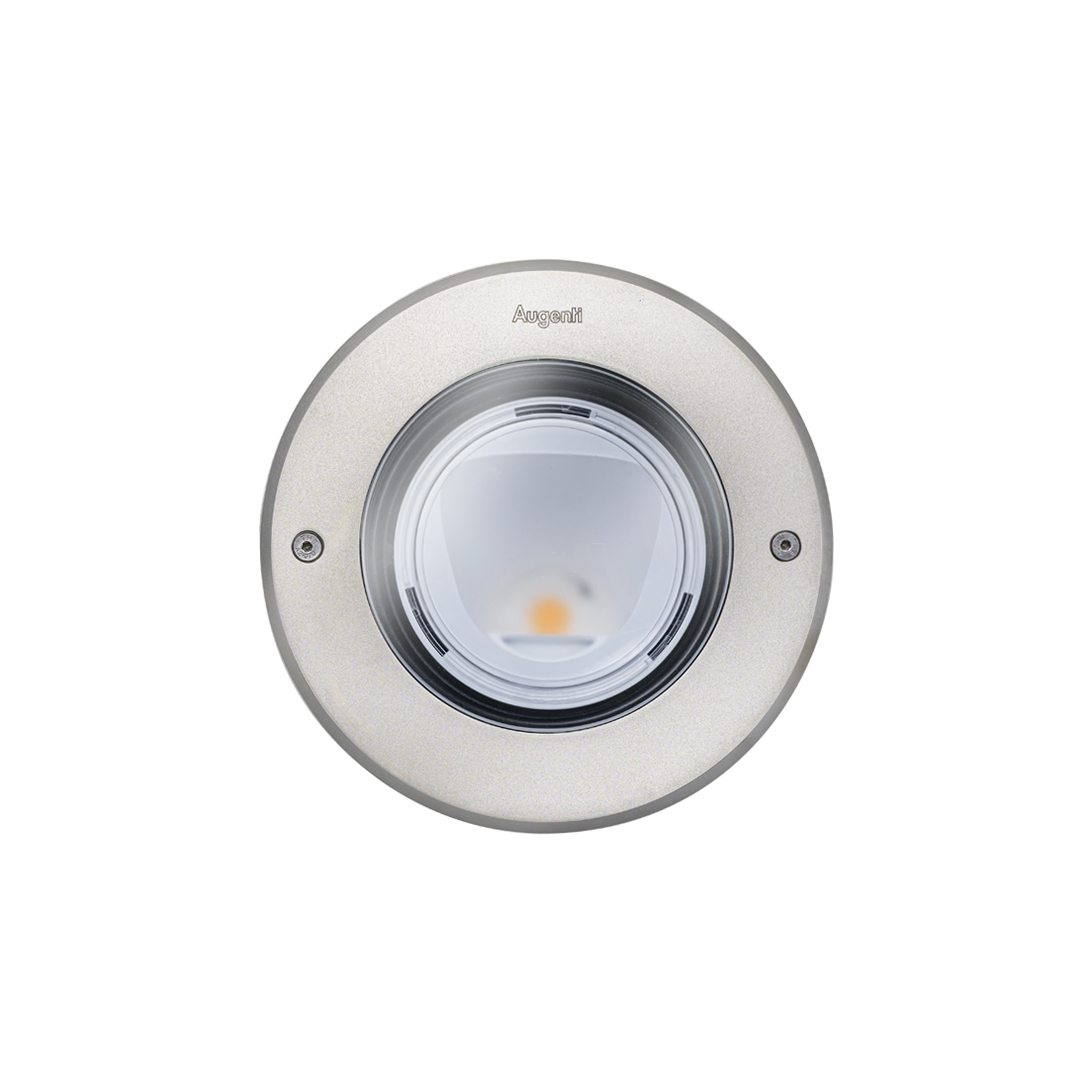

Recessed spotlight asymmetric Carriegeable Ø200 - Built-in driver
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 3200R/HC50AB99 |  Asymmetric |
II | 67 | 20W | 220-240Vac 50/60Hz | ON/OFF | 1757 lm | 2700K |
| 3200R/WC50AB99 | Asymmetric |
II | 67 | 20W | 220-240Vac 50/60Hz | ON/OFF | 1850 lm | 3000K |
| 3200R/NC50AB99 | Asymmetric |
II | 67 | 20W | 220-240Vac 50/60Hz | ON/OFF | 1950 lm | 4000K |
Recessed spotlight DALI Carriegeable Ø200 - Built-in driver
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 3200R/HD50NB99 | Spot/15° |
II | 67 | 20W | 220-240Vac 50/60Hz | DALI-2 integrated | 1805 lm | 2700K |
| 3200R/HD50MB99 | Flood/25° |
II | 67 | 20W | 220-240Vac 50/60Hz | DALI-2 integrated | 1843 lm | 2700K |
| 3200R/HD50WB99 | Wide Flood/36° |
II | 67 | 20W | 220-240Vac 50/60Hz | DALI-2 integrated | 1900 lm | 2700K |
| 3200R/HD50SW99 | Super Wide/60° |
II | 67 | 20W | 220-240Vac 50/60Hz | DALI-2 integrated | 1900 lm | 2700K |
| 3200R/WD50NB99 | Spot/15° |
II | 67 | 20W | 220-240Vac 50/60Hz | DALI-2 integrated | 1900 lm | 3000K |
| 3200R/WD50MB99 | Flood/25° |
II | 67 | 20W | 220-240Vac 50/60Hz | DALI-2 integrated | 1940 lm | 3000K |
| 3200R/WD50WB99 | Wide Flood/36° |
II | 67 | 20W | 220-240Vac 50/60Hz | DALI-2 integrated | 2000 lm | 3000K |
| 3200R/WD50SW99 | Super Wide/60° |
II | 67 | 20W | 220-240Vac 50/60Hz | DALI-2 integrated | 2000 lm | 3000K |
| 3200R/ND50NB99 | Spot/15° |
II | 67 | 20W | 220-240Vac 50/60Hz | DALI-2 integrated | 2000 lm | 4000K |
| 3200R/ND50MB99 | Flood/25° |
II | 67 | 20W | 220-240Vac 50/60Hz | DALI-2 integrated | 2040 lm | 4000K |
| 3200R/ND50WB99 | Wide Flood/36° |
II | 67 | 20W | 220-240Vac 50/60Hz | DALI-2 integrated | 2100 lm | 4000K |
| 3200R/ND50SW99 | Super Wide/60° |
II | 67 | 20W | 220-240Vac 50/60Hz | DALI-2 integrated | 2100 lm | 4000K |
Recessed spotlight DALI asymmetric Carriegeable Ø200 - Built-in driver
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 3200R/HD50AB99 | Asymmetric |
II | 67 | 20W | 220-240Vac 50/60Hz | DALI-2 integrated | 1757 lm | 2700K |
| 3200R/WD50AB99 | Asymmetric |
II | 67 | 20W | 220-240Vac 50/60Hz | DALI-2 integrated | 1850 lm | 3000K |
| 3200R/ND50AB99 | Asymmetric |
II | 67 | 20W | 220-240Vac 50/60Hz | DALI-2 integrated | 1950 lm | 4000K |
