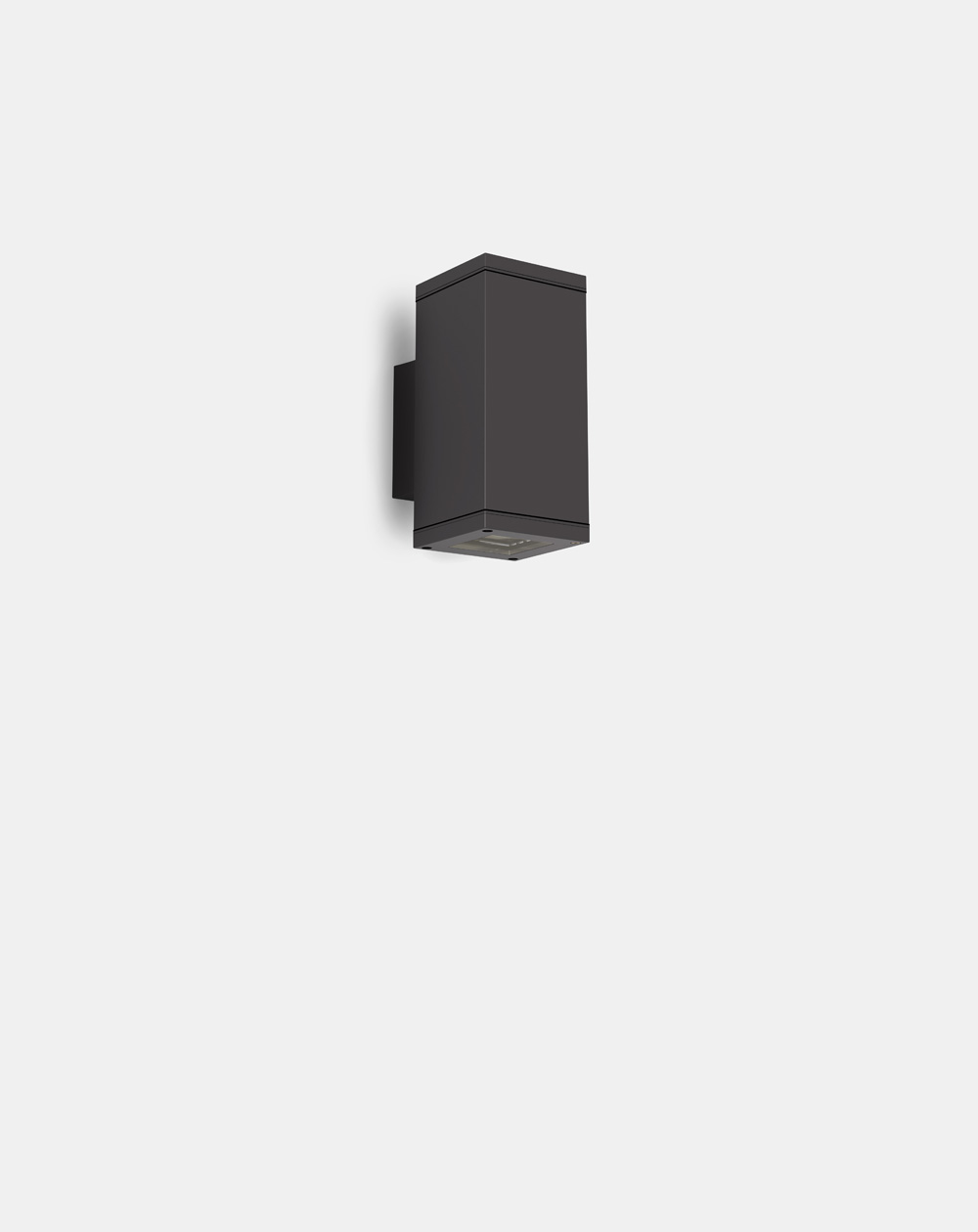

Up&Down Q Wall Wall luminaire
Wall luminaire configurable in single and double emission, ideal for grazing lighting of external facades. Up&Downd-Q is equipped with various secondary optics for controlling the light flow, which allow design flexibility through different combinations of direct and indirect emission. The device includes the use of LED sources with built-in driver with fixed or dimmable Dali output on request with a surcharge.
Installation Type
Wall installation
Body
Die-cast aluminium
Screen
Tempered extra-clear glass 6mm with silk-screen printing
Seals
Closed-cell EPDM rubber
Screws
Stainless steel A2
Paint
Anti-corrosive UV stabilised polyester powder
Wall luminaire Single Emission - Built-in driver
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 9812W/HC0.NB |  Single Flood/10° |
I | 65 | 13W | 220-240Vac 50/60hZ | ON/OFF | 1171 lm | 2700K |
| 9812W/HC0.MB |  Single Flood/26° |
I | 65 | 13W | 220-240Vac 50/60hZ | ON/OFF | 1177 lm | 2700K |
| 9812W/HC0.WB |  Single Wide Flood/56° |
I | 65 | 13W | 220-240Vac 50/60hZ | ON/OFF | 1074 lm | 2700K |
| 9812W/WC0.NB | Single Flood/10° |
I | 65 | 13W | 220-240Vac 50/60hZ | ON/OFF | 1233 lm | 3000K |
| 9812W/WC0.MB | Single Flood/26° |
I | 65 | 13W | 220-240Vac 50/60hZ | ON/OFF | 1239 lm | 3000K |
| 9812W/WC0.WB | Single Wide Flood/56° |
I | 65 | 13W | 220-240Vac 50/60hZ | ON/OFF | 1131 lm | 3000K |
| 9812W/NC0.NB | Single Flood/10° |
I | 65 | 13W | 220-240Vac 50/60hZ | ON/OFF | 1283 lm | 4000K |
| 9812W/NC0.MB | Single Flood/26° |
I | 65 | 13W | 220-240Vac 50/60hZ | ON/OFF | 1288 lm | 4000K |
| 9812W/NC0.WB | Single Wide Flood/56° |
I | 65 | 13W | 220-240Vac 50/60hZ | ON/OFF | 1177 lm | 4000K |
Wall luminaire DALI Single Emission - Built-in driver
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 9812W/HD0.NB | Single Flood/10° |
I | 65 | 13W | 220-240Vac 50/60hZ | DALI-2 integrated | 1171 lm | 2700K |
| 9812W/HD0.MB | Single Flood/26° |
I | 65 | 13W | 220-240Vac 50/60hZ | DALI-2 integrated | 1177 lm | 2700K |
| 9812W/HD0.WB | Single Wide Flood/56° |
I | 65 | 13W | 220-240Vac 50/60hZ | DALI-2 integrated | 1074 lm | 2700K |
| 9812W/WD0.NB | Single Flood/10° |
I | 65 | 13W | 220-240Vac 50/60hZ | DALI-2 integrated | 1233 lm | 3000K |
| 9812W/WD0.MB | Single Flood/26° |
I | 65 | 13W | 220-240Vac 50/60hZ | DALI-2 integrated | 1239 lm | 3000K |
| 9812W/WD0.WB | Single Wide Flood/56° |
I | 65 | 13W | 220-240Vac 50/60hZ | DALI-2 integrated | 1131 lm | 3000K |
| 9812W/ND0.NB | Single Flood/10° |
I | 65 | 13W | 220-240Vac 50/60hZ | DALI-2 integrated | 1283 lm | 4000K |
| 9812W/ND0.MB | Single Flood/26° |
I | 65 | 13W | 220-240Vac 50/60hZ | DALI-2 integrated | 1288 lm | 4000K |
| 9812W/ND0.WB | Single Wide Flood/56° |
I | 65 | 13W | 220-240Vac 50/60hZ | DALI-2 integrated | 1177 lm | 4000K |
Wall luminaire Double Emission - Built-in driver
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 9810W/HC0.NB |  Dual Flood/10°+10° |
I | 65 | 26W | 220-240Vac 50/60hZ | ON/OFF | 2342 lm | 2700K |
| 9810W/HC0.MB |  Dual Flood/26°+26° |
I | 65 | 26W | 220-240Vac 50/60hZ | ON/OFF | 2354 lm | 2700K |
| 9810W/HC0.WB |  Dual Wide Flood/56°+56° |
I | 65 | 26W | 220-240Vac 50/60hZ | ON/OFF | 2148 lm | 2700K |
| 9810W/HC0.NW |  Dual Flood/10°+56° |
I | 65 | 26W | 220-240Vac 50/60hZ | ON/OFF | 2245 lm | 2700K |
| 9810W/WC0.NB | Dual Flood/10°+10° |
I | 65 | 26W | 220-240Vac 50/60hZ | ON/OFF | 2466 lm | 3000K |
| 9810W/WC0.MB | Dual Flood/26°+26° |
I | 65 | 26W | 220-240Vac 50/60hZ | ON/OFF | 2478 lm | 3000K |
| 9810W/WC0.WB | Dual Wide Flood/56°+56° |
I | 65 | 26W | 220-240Vac 50/60hZ | ON/OFF | 2262 lm | 3000K |
| 9810W/WC0.NW | Dual Flood/10°+56° |
I | 65 | 26W | 220-240Vac 50/60hZ | ON/OFF | 2364 lm | 3000K |
| 9810W/NC0.NB | Dual Flood/10°+10° |
I | 65 | 26W | 220-240Vac 50/60hZ | ON/OFF | 2566 lm | 4000K |
| 9810W/NC0.MB | Dual Flood/26°+26° |
I | 65 | 26W | 220-240Vac 50/60hZ | ON/OFF | 2576 lm | 4000K |
| 9810W/NC0.WB | Dual Wide Flood/56°+56° |
I | 65 | 26W | 220-240Vac 50/60hZ | ON/OFF | 2354 lm | 4000K |
| 9810W/NC0.NW | Dual Flood/10°+56° |
I | 65 | 26W | 220-240Vac 50/60hZ | ON/OFF | 2460 lm | 4000K |
Wall luminaire DALI Double Emission - Built-in driver
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 9810W/HD0.NB | Dual Flood/10°+10° |
I | 65 | 26W | 220-240Vac 50/60hZ | DALI-2 integrated | 2342 lm | 2700K |
| 9810W/HD0.MB | Dual Flood/26°+26° |
I | 65 | 26W | 220-240Vac 50/60hZ | DALI-2 integrated | 2354 lm | 2700K |
| 9810W/HD0.WB | Dual Wide Flood/56°+56° |
I | 65 | 26W | 220-240Vac 50/60hZ | DALI-2 integrated | 2148 lm | 2700K |
| 9810W/HD0.NW | Dual Flood/10°+56° |
I | 65 | 26W | 220-240Vac 50/60hZ | DALI-2 integrated | 2245 lm | 2700K |
| 9810W/WD0.NB | Dual Flood/10°+10° |
I | 65 | 26W | 220-240Vac 50/60hZ | DALI-2 integrated | 2466 lm | 3000K |
| 9810W/WD0.MB | Dual Flood/26°+26° |
I | 65 | 26W | 220-240Vac 50/60hZ | DALI-2 integrated | 2478 lm | 3000K |
| 9810W/WD0.WB | Dual Wide Flood/56°+56° |
I | 65 | 26W | 220-240Vac 50/60hZ | DALI-2 integrated | 2262 lm | 3000K |
| 9810W/WD0.NW | Dual Flood/10°+56° |
I | 65 | 26W | 220-240Vac 50/60hZ | DALI-2 integrated | 2364 lm | 3000K |
| 9810W/ND0.NB | Dual Flood/10°+10° |
I | 65 | 26W | 220-240Vac 50/60hZ | DALI-2 integrated | 2566 lm | 4000K |
| 9810W/ND0.MB | Dual Flood/26°+26° |
I | 65 | 26W | 220-240Vac 50/60hZ | DALI-2 integrated | 2576 lm | 4000K |
| 9810W/ND0.WB | Dual Wide Flood/56°+56° |
I | 65 | 26W | 220-240Vac 50/60hZ | DALI-2 integrated | 2354 lm | 4000K |
| 9810W/ND0.NW | Dual Flood/10°+56° |
I | 65 | 26W | 220-240Vac 50/60hZ | DALI-2 integrated | 2460 lm | 4000K |
