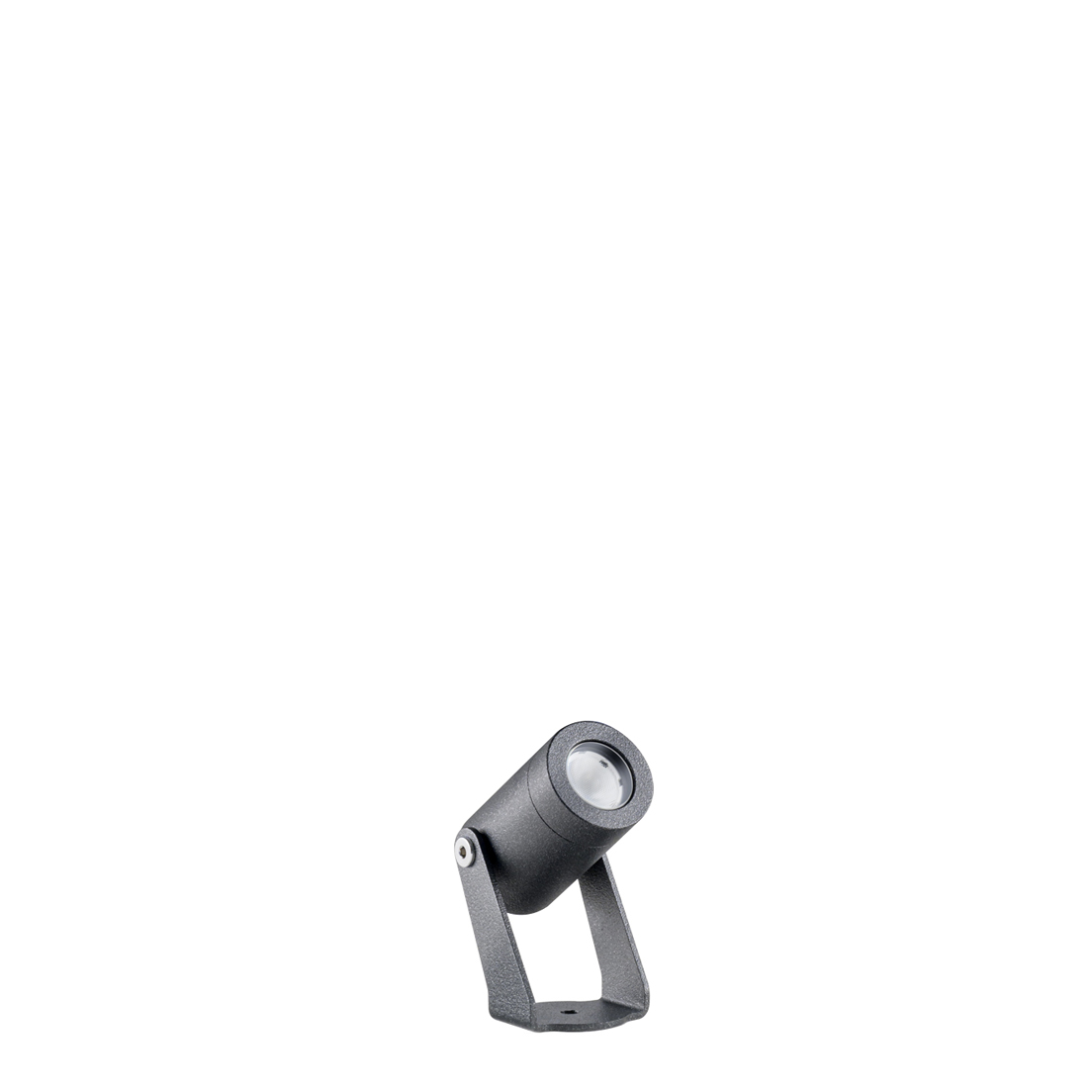

Bloom Mini Floodlight Small sized adjustable projector
The minimal shape and the diameter of only 35mm gives the BLOOM MINI series wide adaptability to any project. The reduced sizes guarantee total flexibility, allowing the integration of BLOOM MINI in multiple contexts. Its versatility can be contextualized in gardens, for the lighting of plants, hedges, flowered areas or to enhance architectural elements, since LIGHT is the fundamental element for a correct perception of objects, spaces and emotions.
Installation tType
Wall, ceiling and stand installation
Body
Anticorodal turning aluminum 6000 Serie, for greater corrosion resistance
Screen
Transparent extra-clear glass 6mm
Seals
Closed-cell EPDM rubber
Screws
Stainless steel A2
Paint
Anti-corrosive UV stabilised polyester powder
Dimmer system
Not dimmable
Download BrochureBloom News 2022
Light beams
Narrow Flood
Lamp: BLOOM MINI FLOODLIGHT
5000W/NRRCNB
Watt: 2W
Type of optics: Flood 14°
Installation height: 4 mt
Distance between luminaires: 4 mt
Medium Flood
Lamp: BLOOM MINI FLOODLIGHT
5000W/NRRCMB
Watt: 2W
Type of optics: Flood 30°
Installation height: 4 mt
Distance between luminaires: 4 mt
Wide Flood
Lamp: BLOOM MINI FLOODLIGHT
5000W/NRRCWB
Watt: 2W
Type of optics: Wide Flood 40°
Installation height: 4 mt
Distance between luminaires: 4 mt
Adjustable Projector -Remote driver 24Vdc
| Code | Beam | Class | IP | W | Power supply | Dimmer system | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 5000W/HRRCNB |  Spot/15° |
III | 66 | 2W | 24Vdc | Not dimmable | 130 lm | 2700K |
| 5000W/HRRCMB |  Flood/30° |
III | 66 | 2W | 24Vdc | Not dimmable | 125 lm | 2700K |
| 5000W/HRRCWB |  Wide Flood/40° |
III | 66 | 2W | 24Vdc | Not dimmable | 120 lm | 2700K |
| 5000W/WRRCNB | Spot/15° |
III | 66 | 2W | 24Vdc | Not dimmable | 130 lm | 3000K |
| 5000W/WRRCMB | Flood/30° |
III | 66 | 2W | 24Vdc | Not dimmable | 125 lm | 3000K |
| 5000W/WRRCWB | Wide Flood/40° |
III | 66 | 2W | 24Vdc | Not dimmable | 120 lm | 3000K |
| 5000W/NRRCNB | Spot/15° |
III | 66 | 2W | 24Vdc | Not dimmable | 150 lm | 4000K |
| 5000W/NRRCMB | Flood/30° |
III | 66 | 2W | 24Vdc | Not dimmable | 145 lm | 4000K |
| 5000W/NRRCWB | Wide Flood/40° |
III | 66 | 2W | 24Vdc | Not dimmable | 140 lm | 4000K |
Adjustable Projector -Remote driver max 700mA DC
| Code | Beam | Class | IP | W | Power supply | Dimmer system | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 5000W/HRCCNB | Spot/15° |
III | 66 | 2W | max 700mA DC | Remote DALI dimmable | 170 lm | 2700K |
| 5000W/HRCCMB | Flood/30° |
III | 66 | 2W | max 700mA DC | Remote DALI dimmable | 165 lm | 2700K |
| 5000W/HRCCWB | Wide Flood/40° |
III | 66 | 2W | max 700mA DC | Remote DALI dimmable | 162 lm | 2700K |
| 5000W/WRCCNB | Spot/15° |
III | 66 | 2W | max 700mA DC | Remote DALI dimmable | 170 lm | 3000K |
| 5000W/WRCCMB | Flood/30° |
III | 66 | 2W | max 700mA DC | Remote DALI dimmable | 165 lm | 3000K |
| 5000W/WRCCWB | Wide Flood/40° |
III | 66 | 2W | max 700mA DC | Remote DALI dimmable | 162 lm | 3000K |
| 5000W/NRCCNB | Spot/15° |
III | 66 | 2W | max 700mA DC | Remote DALI dimmable | 188 lm | 4000K |
| 5000W/NRCCMB | Flood/30° |
III | 66 | 2W | max 700mA DC | Remote DALI dimmable | 183 lm | 4000K |
| 5000W/NRCCWB | Wide Flood/40° |
III | 66 | 2W | max 700mA DC | Remote DALI dimmable | 180 lm | 4000K |
