Matrix Recessed RGBW RGBW-Einbauleuchten für lineare Beleuchtung

Das Matrix-RGBW-System wurde komplett überarbeitet, wodurch die Effizienz und die Lumenleistung der Farben deutlich erhöht wurden. Im Inneren der Lampe befindet sich ein neues, auf einem Mikrochip-Algorithmus basierendes DMX-Steuerungssystem, das in der Lage ist, für jede einzelne Farbe oder für die Kombination der beiden Farbkanäle eine konstante, volle Wattleistung zu erzielen.

Art der Installation
Bodeneinbau

Gehäuse
Stranggepresstes Aluminium

Box
Edelstahlblech AISI430F

Rahmen
Gebürsteter Stahl AISI316

Schirm
8 mm starkes, extraklares, gehärtetes Glas mit Siebdruck

Dichtungen
Geschlossenzelliger EPDM-Kautschuk

Schrauben
Edelstahl A2

Dimmen
Dimmbar

Download BrochureAlgorithm

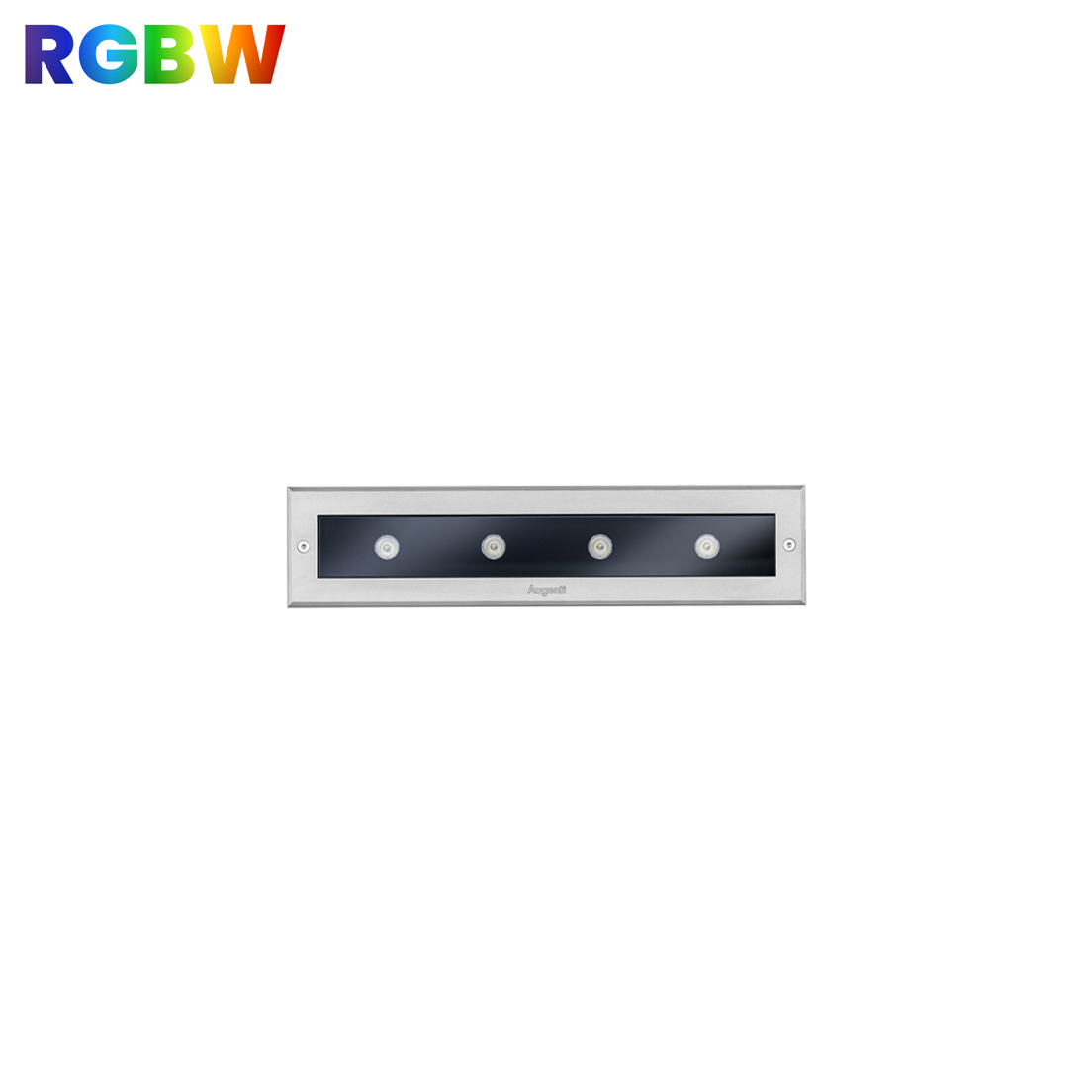

Einbau-Wallwasher RGBW L. 340

Einbau-Wallwasher RGBW  L. 340 Matrix Recessed RGBW
Einbau-Wallwasher RGBW  L. 340 Matrix Recessed RGBW

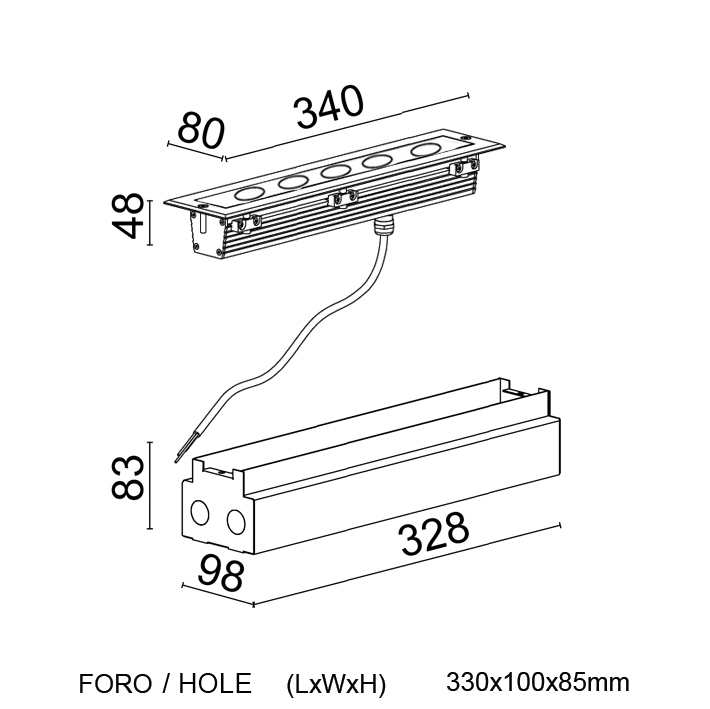

Einbau-Wallwasher RGBW  L. 340 Matrix Recessed RGBW - Disegno tecnico
Code Lichtbündel Klasse IP W Quelle Leuchte CCT LED
2800R/RCRC.MB99 MB-SU Mittel/24° III 67 12W with Algorithm 1650 lm 1420 lm RGBW (W=6500K)
2800R/RCRC.O499 OB-SU Ovales/40°x20° III 67 12W with Algorithm 1650 lm 1420 lm RGBW (W=6500K)
2800R/RCRC.WB99 WB-SU Breit/35° III 67 12W with Algorithm 1650 lm 1420 lm RGBW (W=6500K)
2800R/RCRC.SW99 SW-SU Superbreit/54° III 67 12W with Algorithm 1650 lm 1420 lm RGBW (W=6500K)

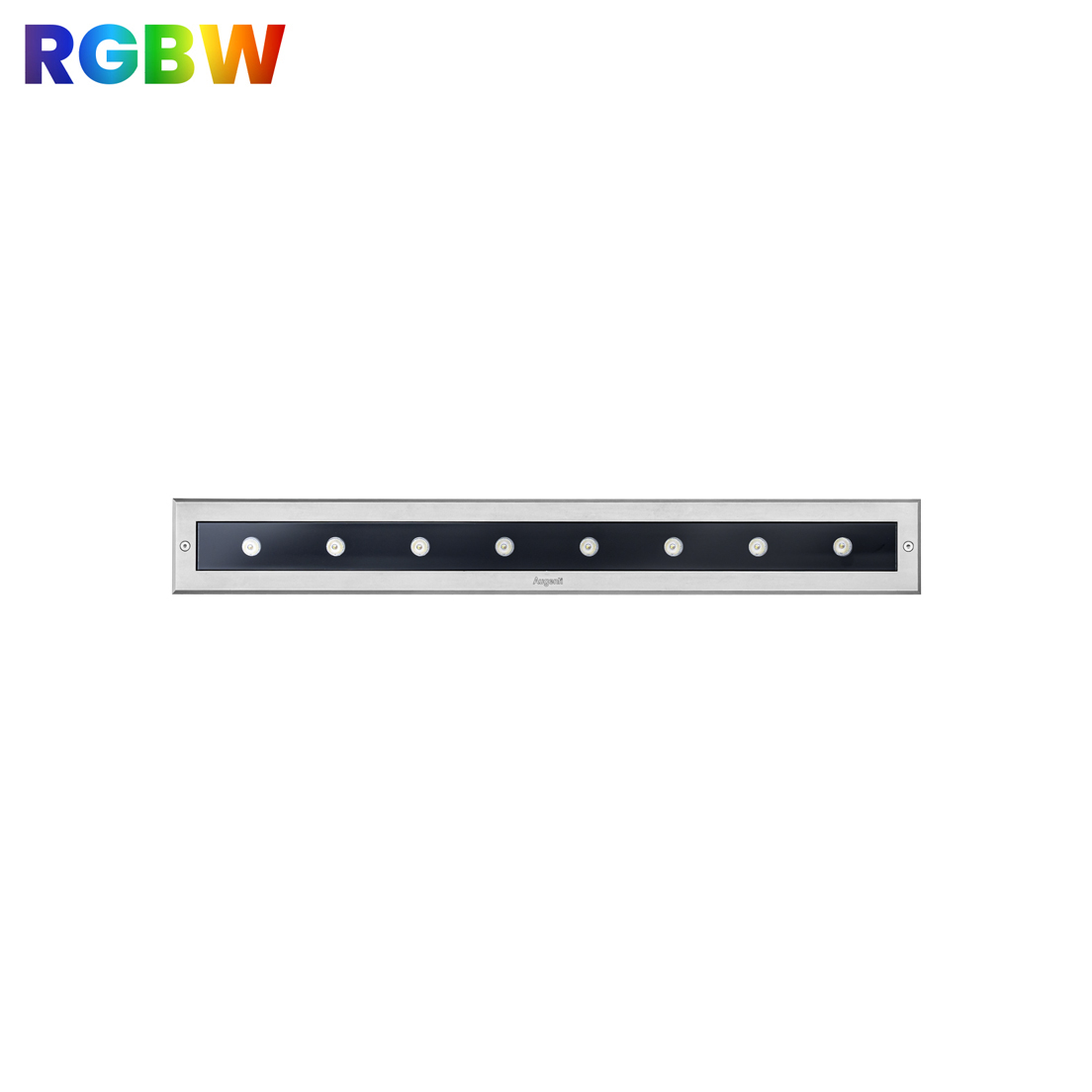

Einbau-Wallwasher RGBW L. 620

Einbau-Wallwasher RGBW  L. 620 Matrix Recessed RGBW
Einbau-Wallwasher RGBW  L. 620 Matrix Recessed RGBW

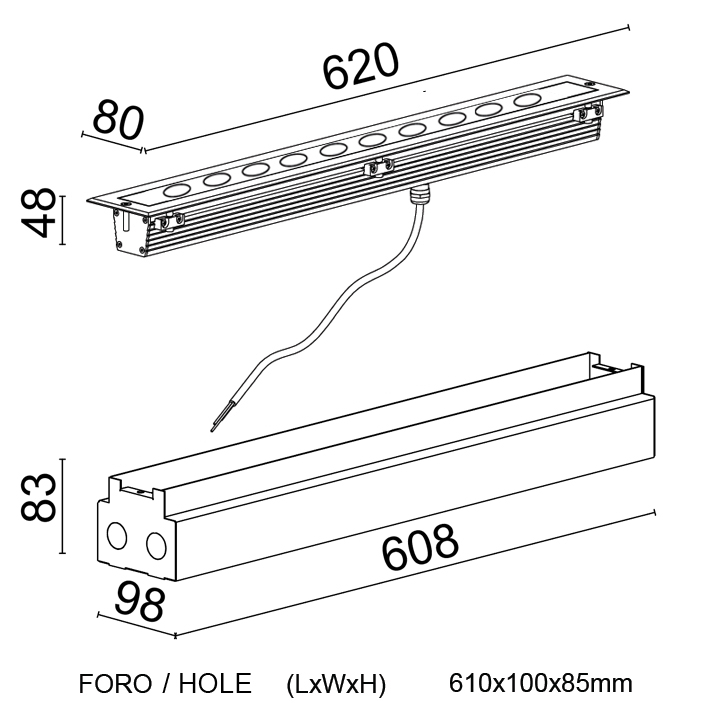

Einbau-Wallwasher RGBW  L. 620 Matrix Recessed RGBW - Disegno tecnico
Code Lichtbündel Klasse IP W Quelle Leuchte CCT LED
2801R/RCRC.MB99 MB-SU Mittel/24° III 67 24W with Algorithm 3300 lm 2840 lm RGBW (W=6500K)
2801R/RCRC.O499 OB-SU Ovales/40°x20° III 67 24W with Algorithm 3300 lm 2840 lm RGBW (W=6500K)
2801R/RCRC.WB99 WB-SU Breit/35° III 67 24W with Algorithm 3300 lm 2840 lm RGBW (W=6500K)
2801R/RCRC.SW99 SW-SU Superbreit/54° III 67 24W with Algorithm 3300 lm 2840 lm RGBW (W=6500K)

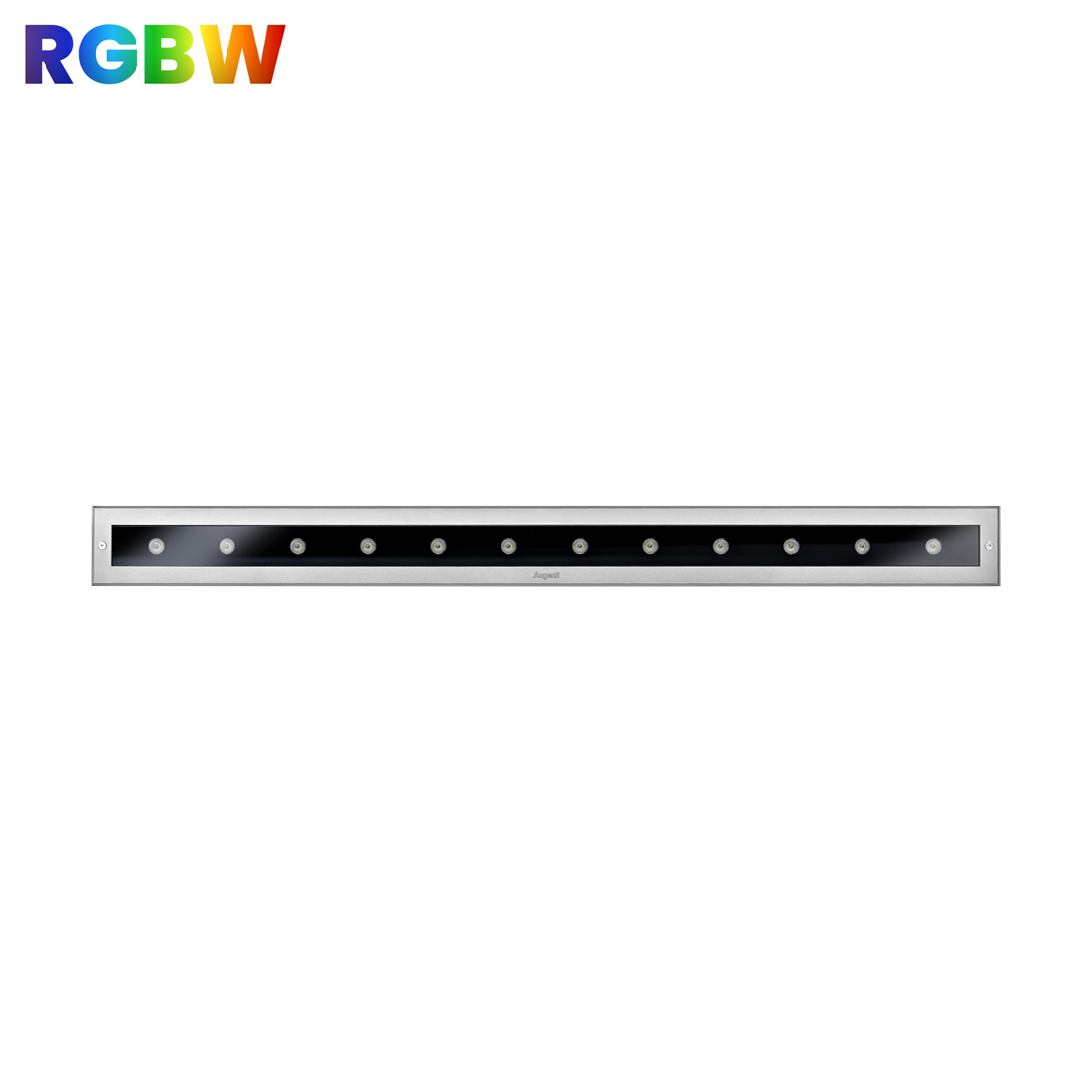

Einbau-Wallwasher RGBW L. 900

Einbau-Wallwasher RGBW  L. 900 Matrix Recessed RGBW
Einbau-Wallwasher RGBW  L. 900 Matrix Recessed RGBW

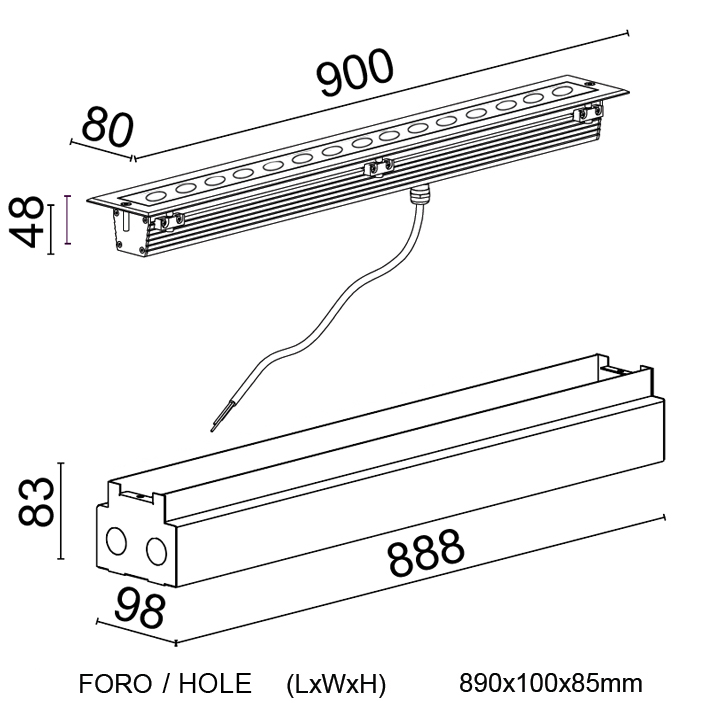

Einbau-Wallwasher RGBW  L. 900 Matrix Recessed RGBW - Disegno tecnico
Code Lichtbündel Klasse IP W Quelle Leuchte CCT LED
2802R/RCRC.MB99 MB-SU Mittel/24° III 67 36W with Algorithm 4950 lm 4260 lm RGBW (W=6500K)
2802R/RCRC.O499 OB-SU Ovales/40°x20° III 67 36W with Algorithm 4950 lm 4260 lm RGBW (W=6500K)
2802R/RCRC.WB99 WB-SU Breit/35° III 67 36W with Algorithm 4950 lm 4260 lm RGBW (W=6500K)
2802R/RCRC.SW99 SW-SU Superbreit/54° III 67 36W with Algorithm 4950 lm 4260 lm RGBW (W=6500K)

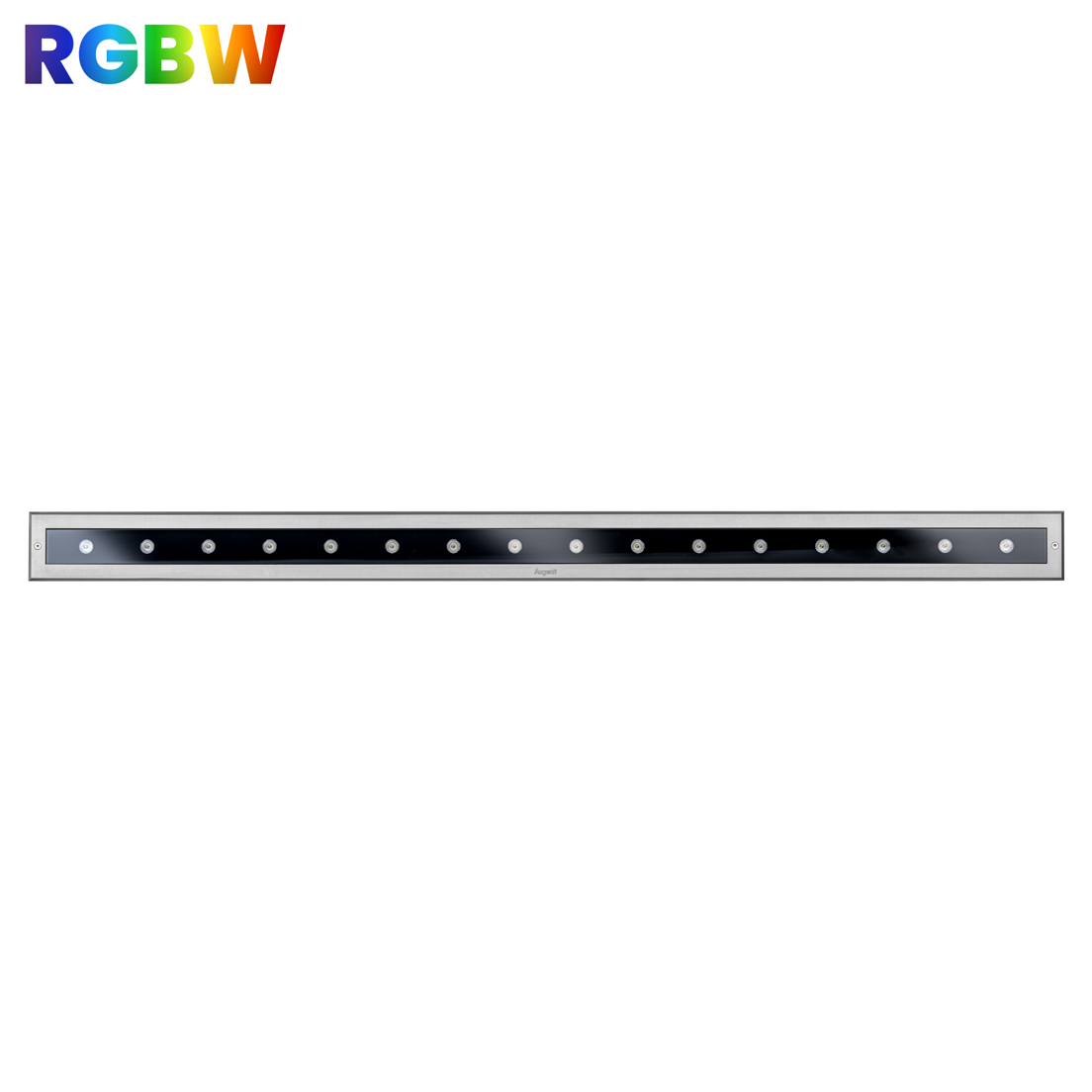

Einbau-Wallwasher RGBW L.1180

Einbau-Wallwasher RGBW  L.1180 Matrix Recessed RGBW
Einbau-Wallwasher RGBW  L.1180 Matrix Recessed RGBW

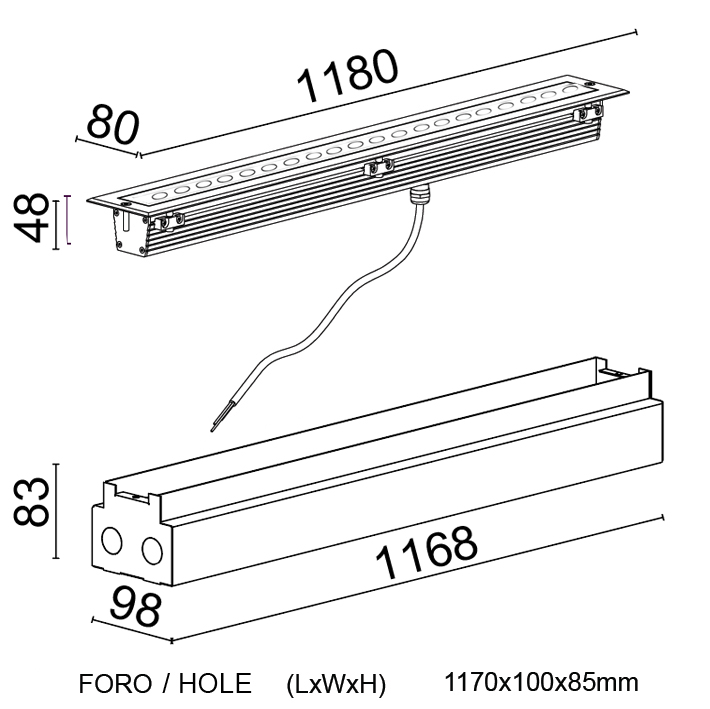

Einbau-Wallwasher RGBW  L.1180 Matrix Recessed RGBW - Disegno tecnico
Code Lichtbündel Klasse IP W Quelle Leuchte CCT LED
2803R/RCRC.MB99 MB-SU Mittel/24° III 67 48W with Algorithm 6600 lm 5680 lm RGBW (W=6500K)
2803R/RCRC.O499 OB-SU Ovales/40°x20° III 67 48W with Algorithm 6600 lm 5680 lm RGBW (W=6500K)
2803R/RCRC.WB99 WB-SU Breit/35° III 67 48W with Algorithm 6600 lm 5680 lm RGBW (W=6500K)
2803R/RCRC.SW99 SW-SU Superbreit/54° III 67 48W with Algorithm 6600 lm 5680 lm RGBW (W=6500K)
