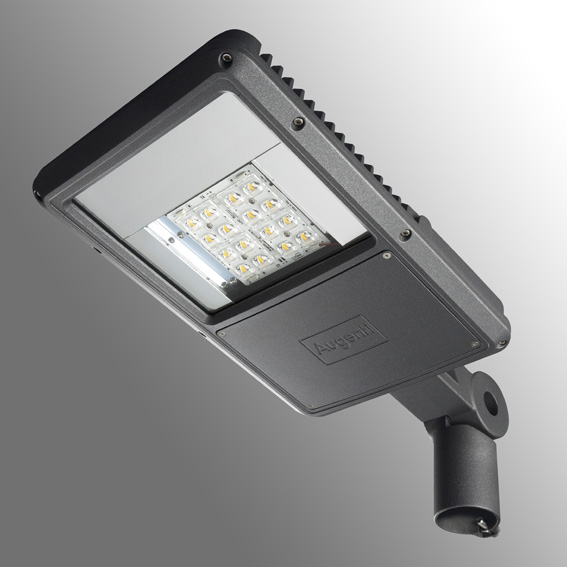

Moon Lighting body for urban furniture
Modern and versatile streetlighting luminaire, with an high photometric performance, a wide range of power, his reliability makes it the safe and ideal choice for the lighting of main motorways, city area and outskirts roads, crossings, parkings, squares and large road areas. Frame and casing in die-cast aluminium with safety brackets for opening elements, necessary during mainteinance operations. The driver section is mounted on metal plate quickly removable. The Ø60 pole attachment is provided with an adjustable goniometer 0°÷110° with graduated scale.
Installation tType
Pole and wall installation
Body
Die-cast aluminium
Screen
Transparent monolithic tempered glass 4 mm
Seals
Expanded silicone - moulded silicone
Screws
Stainless steel A2
Paint
Anti-corrosive UV stabilised polyester powder
Dimmer system
DALI available on request

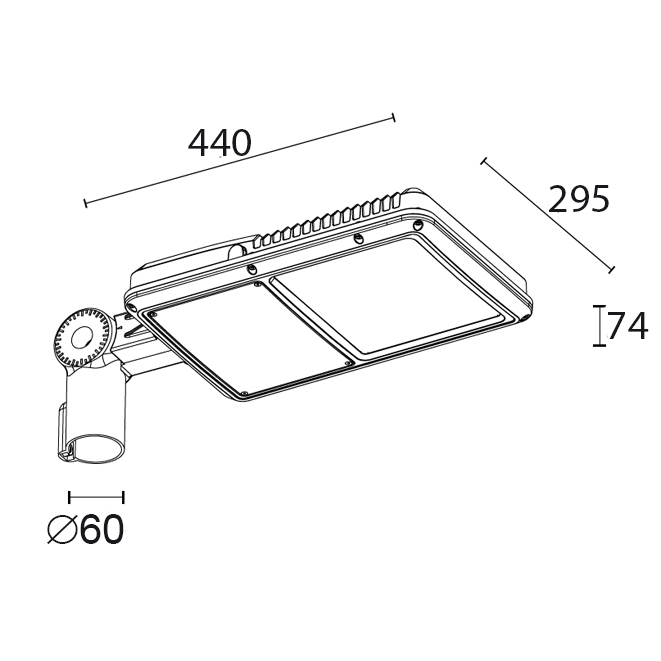

Pole head L. 440 Asymmetrical Emission 16LED
| Code | Beam | Class | IP | W | Power supply | Dimmer system | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| SP04H/WP90CP |  Parking/Asymmetric |
I | 66 | 45W | 220-240Vac 50/60Hz | DALI available on request | 5730 lm | 3000K |
| SP04H/WP90PP | Cycle Lane/Asymmetric |
I | 66 | 45W | 220-240Vac 50/60Hz | DALI available on request | 5730 lm | 3000K |
| SP04H/WP90ST | Street/Asymmetric |
I | 66 | 45W | 220-240Vac 50/60Hz | DALI available on request | 5730 lm | 3000K |
| SP04H/NP90CP | Parking/Asymmetric |
I | 66 | 45W | 220-240Vac 50/60Hz | DALI available on request | 6030 lm | 4000K |
| SP04H/NP90PP | Cycle Lane/Asymmetric |
I | 66 | 45W | 220-240Vac 50/60Hz | DALI available on request | 6030 lm | 4000K |
| SP04H/NP90ST | Street/Asymmetric |
I | 66 | 45W | 220-240Vac 50/60Hz | DALI available on request | 6030 lm | 4000K |
Pole head L. 440 Asymmetrical Emission 24LED
| Code | Beam | Class | IP | W | Power supply | Dimmer system | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| SP07H/WP10CP | Parking/Asymmetric |
I | 66 | 75W | 220-240Vac 50/60Hz | DALI available on request | 9880 lm | 3000K |
| SP07H/WP10PP | Cycle Lane/Asymmetric |
I | 66 | 75W | 220-240Vac 50/60Hz | DALI available on request | 9880 lm | 3000K |
| SP07H/WP10ST | Street/Asymmetric |
I | 66 | 75W | 220-240Vac 50/60Hz | DALI available on request | 9880 lm | 3000K |
| SP07H/NP10CP | Parking/Asymmetric |
I | 66 | 75W | 220-240Vac 50/60Hz | DALI available on request | 10400 lm | 4000K |
| SP07H/NP10PP | Cycle Lane/Asymmetric |
I | 66 | 75W | 220-240Vac 50/60Hz | DALI available on request | 10400 lm | 4000K |
| SP07H/NP10ST | Street/Asymmetric |
I | 66 | 75W | 220-240Vac 50/60Hz | DALI available on request | 10400 lm | 4000K |

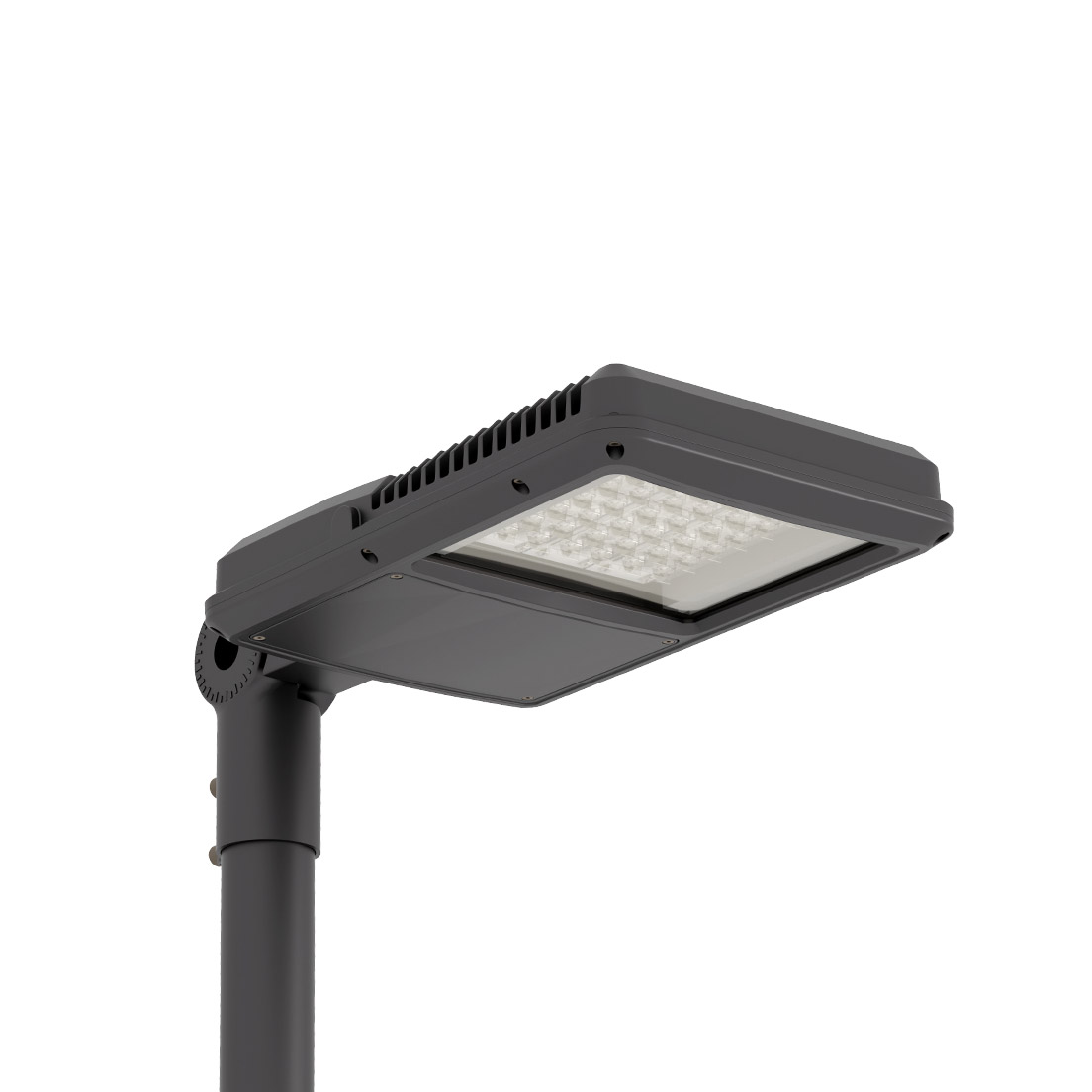

Pole head L. 440 Asymmetrical Emission 36LED
| Code | Beam | Class | IP | W | Power supply | Dimmer system | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| SP10H/WP90CP | Parking/Asymmetric |
I | 66 | 100W | 220-240Vac 50/60Hz | DALI available on request | 12900 lm | 3000K |
| SP10H/WP90PP | Cycle Lane/Asymmetric |
I | 66 | 100W | 220-240Vac 50/60Hz | DALI available on request | 12900 lm | 3000K |
| SP10H/WP90ST | Street/Asymmetric |
I | 66 | 100W | 220-240Vac 50/60Hz | DALI available on request | 12900 lm | 3000K |
| SP10H/NP90CP | Parking/Asymmetric |
I | 66 | 100W | 220-240Vac 50/60Hz | DALI available on request | 13600 lm | 4000K |
| SP10H/NP90PP | Cycle Lane/Asymmetric |
I | 66 | 100W | 220-240Vac 50/60Hz | DALI available on request | 13600 lm | 4000K |
| SP10H/NP90ST | Street/Asymmetric |
I | 66 | 100W | 220-240Vac 50/60Hz | DALI available on request | 13600 lm | 4000K |

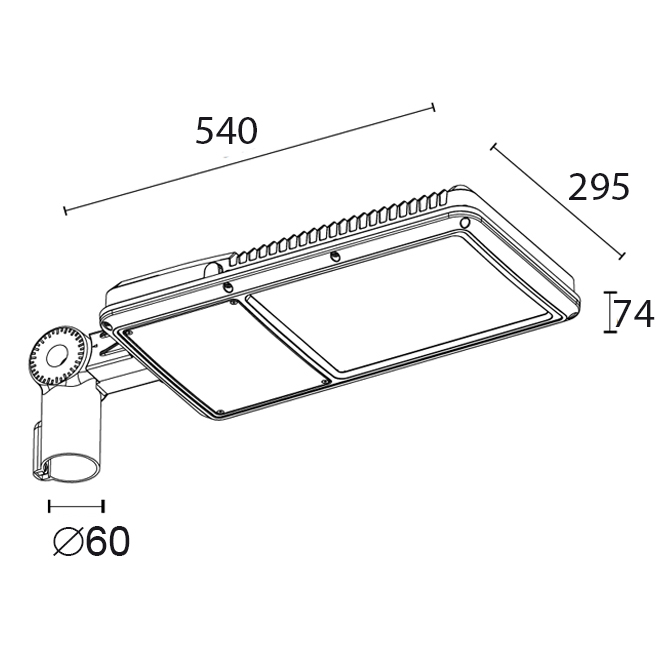

Pole head L. 540 Asymmetrical Emission 48LED
| Code | Beam | Class | IP | W | Power supply | Dimmer system | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| SG15H/WP50CP | Parking/Asymmetric |
I | 66 | 150W | 220-240Vac 50/60Hz | DALI available on request | 19200 lm | 3000K |
| SG15H/WP50PP | Cycle Lane/Asymmetric |
I | 66 | 150W | 220-240Vac 50/60Hz | DALI available on request | 19200 lm | 3000K |
| SG15H/WP50ST | Street/Asymmetric |
I | 66 | 150W | 220-240Vac 50/60Hz | DALI available on request | 19200 lm | 3000K |
| SG15H/NP50CP | Parking/Asymmetric |
I | 66 | 150W | 220-240Vac 50/60Hz | DALI available on request | 20200 lm | 4000K |
| SG15H/NP50PP | Cycle Lane/Asymmetric |
I | 66 | 150W | 220-240Vac 50/60Hz | DALI available on request | 20200 lm | 4000K |
| SG15H/NP50ST | Street/Asymmetric |
I | 66 | 150W | 220-240Vac 50/60Hz | DALI available on request | 20200 lm | 4000K |

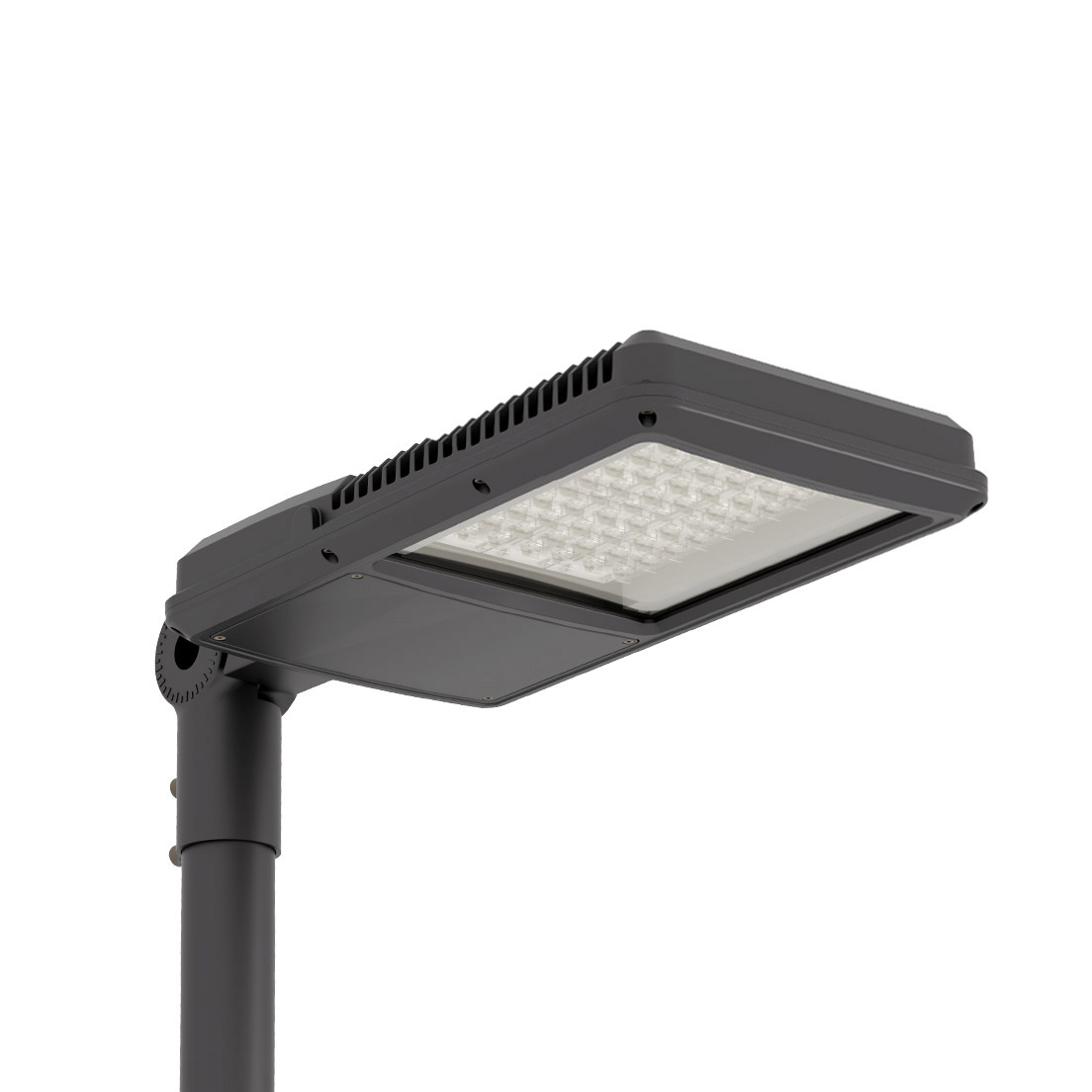

Pole head L. 540 Asymmetrical Emission 64LED
| Code | Beam | Class | IP | W | Power supply | Dimmer system | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| SG20H/WP55CP | Parking/Asymmetric |
I | 66 | 205W | 220-240Vac 50/60Hz | DALI available on request | 25730 lm | 3000K |
| SG20H/WP55PP | Cycle Lane/Asymmetric |
I | 66 | 205W | 220-240Vac 50/60Hz | DALI available on request | 25730 lm | 3000K |
| SG20H/WP55ST | Street/Asymmetric |
I | 66 | 205W | 220-240Vac 50/60Hz | DALI available on request | 25730 lm | 3000K |
| SG20H/NP55CP | Parking/Asymmetric |
I | 66 | 205W | 220-240Vac 50/60Hz | DALI available on request | 27080 lm | 4000K |
| SG20H/NP55PP | Cycle Lane/Asymmetric |
I | 66 | 205W | 220-240Vac 50/60Hz | DALI available on request | 27080 lm | 4000K |
| SG20H/NP55ST | Street/Asymmetric |
I | 66 | 205W | 220-240Vac 50/60Hz | DALI available on request | 27080 lm | 4000K |
Wall fixing lighting L. 440 Asymmetrical Emission 16LED
| Code | Beam | Class | IP | W | Power supply | Dimmer system | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| SP04W/WP90CP | Parking/Asymmetric |
I | 66 | 45W | 220-240Vac 50/60Hz | DALI available on request | 5730 lm | 3000K |
| SP04W/WP90PP | Cycle Lane/Asymmetric |
I | 66 | 45W | 220-240Vac 50/60Hz | DALI available on request | 5730 lm | 3000K |
| SP04W/WP90ST | Street/Asymmetric |
I | 66 | 45W | 220-240Vac 50/60Hz | DALI available on request | 5730 lm | 3000K |
| SP04W/NP90CP | Parking/Asymmetric |
I | 66 | 45W | 220-240Vac 50/60Hz | DALI available on request | 6030 lm | 4000K |
| SP04W/NP90PP | Cycle Lane/Asymmetric |
I | 66 | 45W | 220-240Vac 50/60Hz | DALI available on request | 6030 lm | 4000K |
| SP04W/NP90ST | Street/Asymmetric |
I | 66 | 45W | 220-240Vac 50/60Hz | DALI available on request | 6030 lm | 4000K |

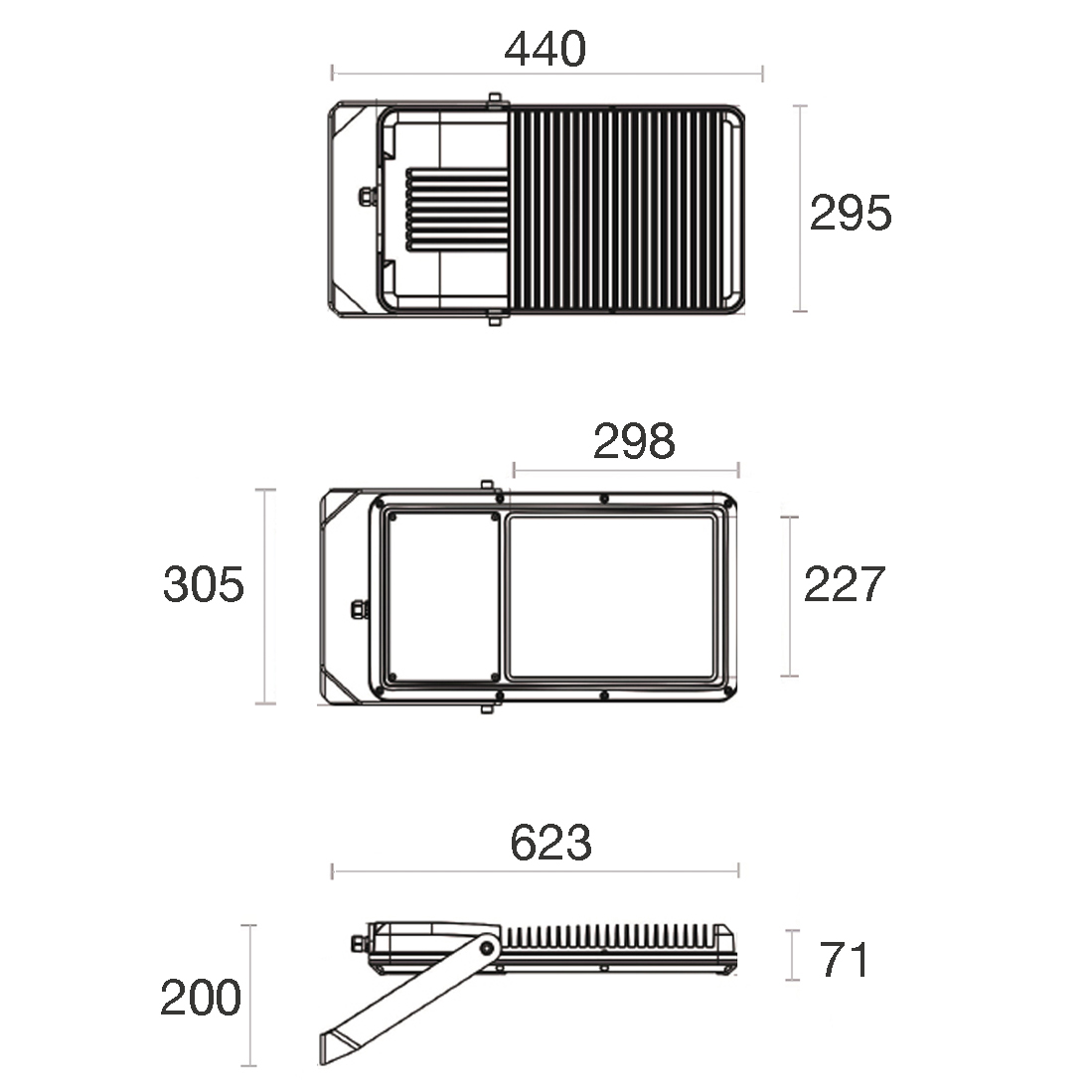

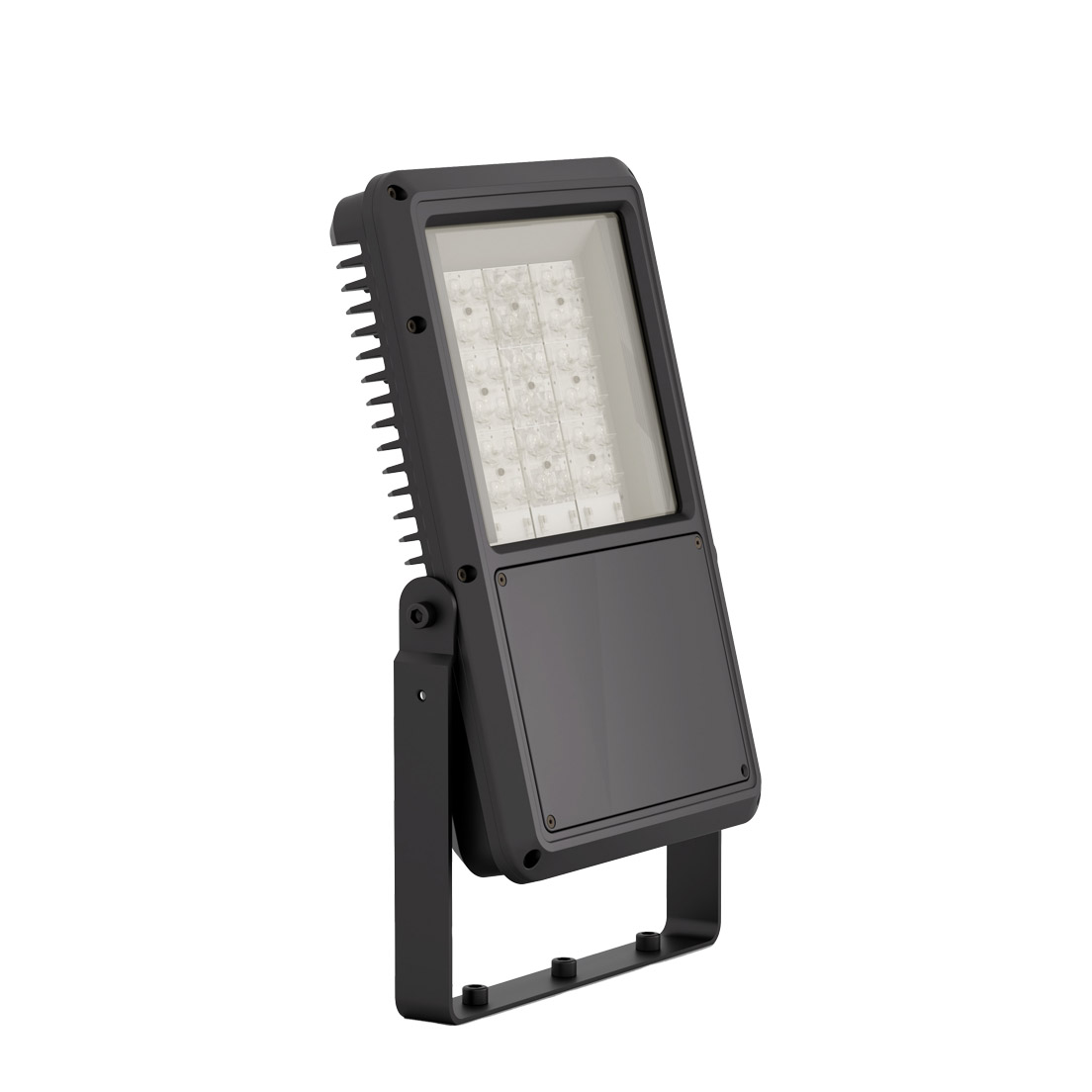

Wall fixing lighting L. 440 Asymmetrical Emission 24LED
| Code | Beam | Class | IP | W | Power supply | Dimmer system | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| SP07W/WP10CP | Parking/Asymmetric |
I | 66 | 75W | 220-240Vac 50/60Hz | DALI available on request | 9880 lm | 3000K |
| SP07W/WP10PP | Cycle Lane/Asymmetric |
I | 66 | 75W | 220-240Vac 50/60Hz | DALI available on request | 9880 lm | 3000K |
| SP07W/WP10ST | Street/Asymmetric |
I | 66 | 75W | 220-240Vac 50/60Hz | DALI available on request | 9880 lm | 3000K |
| SP07W/NP10CP | Parking/Asymmetric |
I | 66 | 75W | 220-240Vac 50/60Hz | DALI available on request | 10400 lm | 4000K |
| SP07W/NP10PP | Cycle Lane/Asymmetric |
I | 66 | 75W | 220-240Vac 50/60Hz | DALI available on request | 10400 lm | 4000K |
| SP07W/NP10ST | Street/Asymmetric |
I | 66 | 75W | 220-240Vac 50/60Hz | DALI available on request | 10400 lm | 4000K |
Wall fixing lighting L. 440 Asymmetrical Emission 36LED
| Code | Beam | Class | IP | W | Power supply | Dimmer system | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| SP10W/WP90CP | Parking/Asymmetric |
I | 66 | 100W | 220-240Vac 50/60Hz | DALI available on request | 12900 lm | 3000K |
| SP10W/WP90PP | Cycle Lane/Asymmetric |
I | 66 | 100W | 220-240Vac 50/60Hz | DALI available on request | 12900 lm | 3000K |
| SP10W/WP90ST | Street/Asymmetric |
I | 66 | 100W | 220-240Vac 50/60Hz | DALI available on request | 12900 lm | 3000K |
| SP10W/NP90CP | Parking/Asymmetric |
I | 66 | 100W | 220-240Vac 50/60Hz | DALI available on request | 13600 lm | 4000K |
| SP10W/NP90PP | Cycle Lane/Asymmetric |
I | 66 | 100W | 220-240Vac 50/60Hz | DALI available on request | 13600 lm | 4000K |
| SP10W/NP90ST | Street/Asymmetric |
I | 66 | 100W | 220-240Vac 50/60Hz | DALI available on request | 13600 lm | 4000K |
Wall fixing lighting L. 540 Asymmetrical Emission 48LED
| Code | Beam | Class | IP | W | Power supply | Dimmer system | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| SG15W/WP50CP | Parking/Asymmetric |
I | 66 | 150W | 220-240Vac 50/60Hz | DALI available on request | 19200 lm | 3000K |
| SG15W/WP50PP | Cycle Lane/Asymmetric |
I | 66 | 150W | 220-240Vac 50/60Hz | DALI available on request | 19200 lm | 3000K |
| SG15W/WP50ST | Street/Asymmetric |
I | 66 | 150W | 220-240Vac 50/60Hz | DALI available on request | 19200 lm | 3000K |
| SG15W/NP50CP | Parking/Asymmetric |
I | 66 | 150W | 220-240Vac 50/60Hz | DALI available on request | 20200 lm | 4000K |
| SG15W/NP50PP | Cycle Lane/Asymmetric |
I | 66 | 150W | 220-240Vac 50/60Hz | DALI available on request | 20200 lm | 4000K |
| SG15W/NP50ST | Street/Asymmetric |
I | 66 | 150W | 220-240Vac 50/60Hz | DALI available on request | 20200 lm | 4000K |

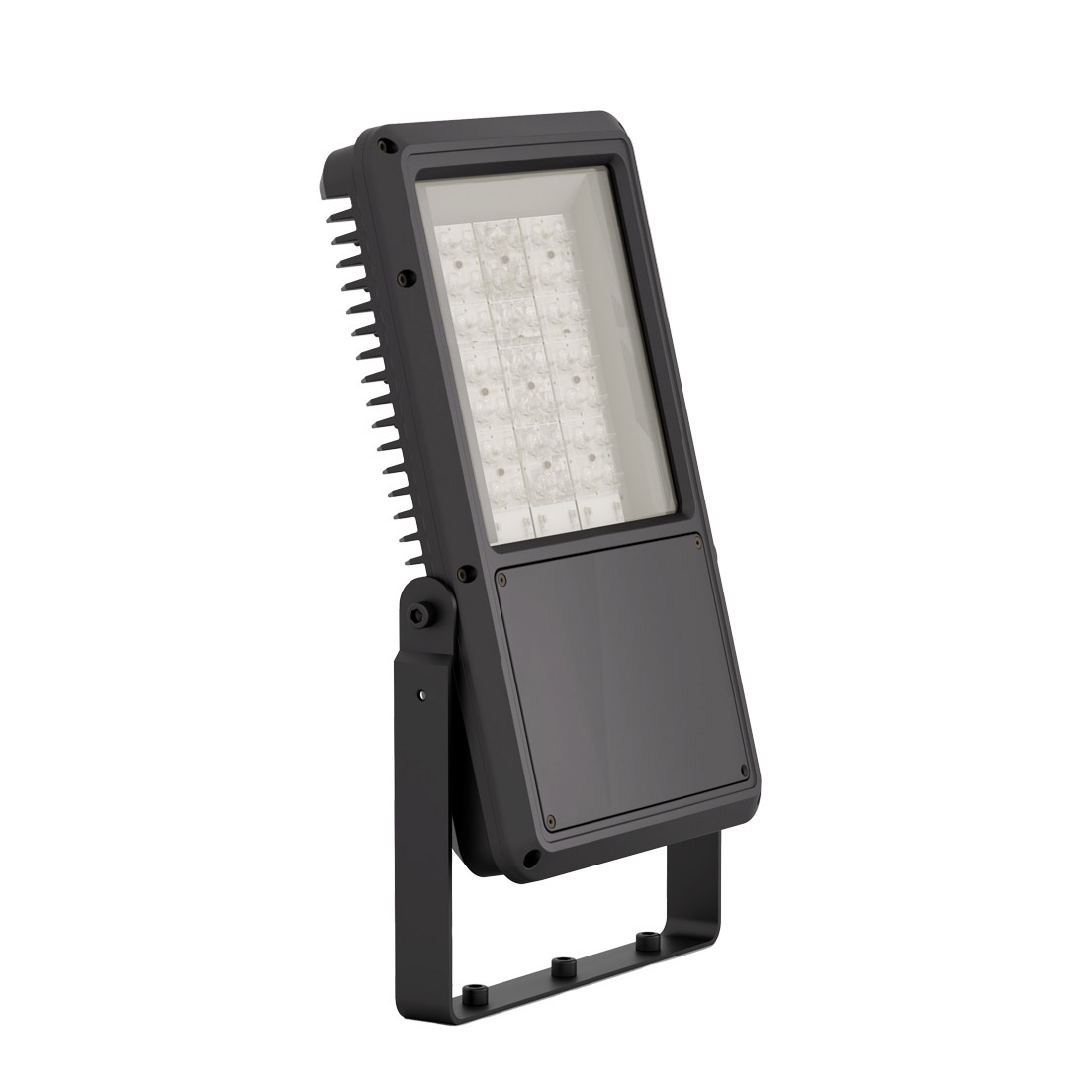

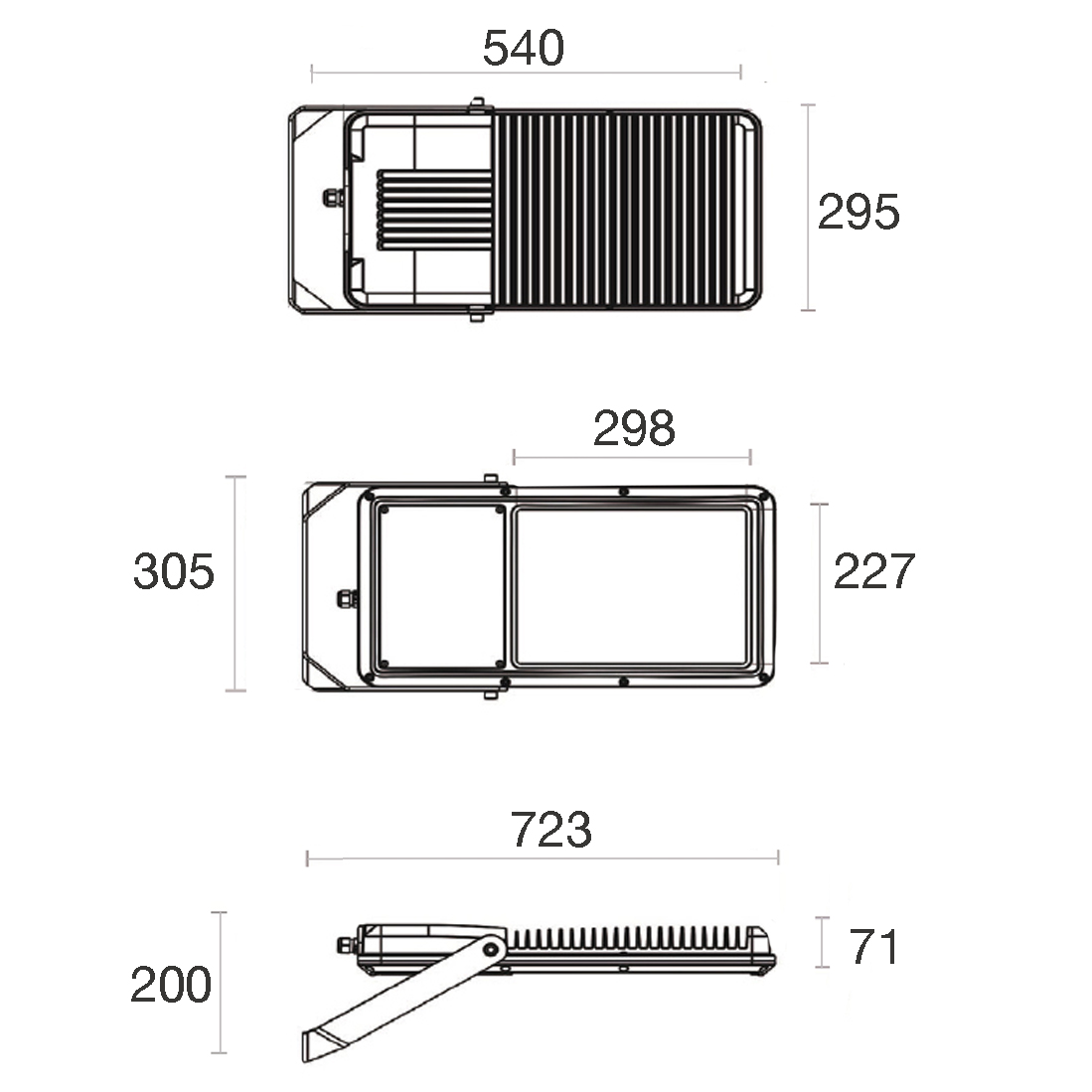

Wall fixing lighting L. 540 Asymmetrical Emission 64LED
| Code | Beam | Class | IP | W | Power supply | Dimmer system | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| SG20W/WP55CP | Parking/Asymmetric |
I | 66 | 205W | 220-240Vac 50/60Hz | DALI available on request | 25730 lm | 3000K |
| SG20W/WP55PP | Cycle Lane/Asymmetric |
I | 66 | 205W | 220-240Vac 50/60Hz | DALI available on request | 25730 lm | 3000K |
| SG20W/WP55ST | Street/Asymmetric |
I | 66 | 205W | 220-240Vac 50/60Hz | DALI available on request | 25730 lm | 3000K |
| SG20W/NP55CP | Parking/Asymmetric |
I | 66 | 205W | 220-240Vac 50/60Hz | DALI available on request | 27080 lm | 4000K |
| SG20W/NP55PP | Cycle Lane/Asymmetric |
I | 66 | 205W | 220-240Vac 50/60Hz | DALI available on request | 27080 lm | 4000K |
| SG20W/NP55ST | Street/Asymmetric |
I | 66 | 205W | 220-240Vac 50/60Hz | DALI available on request | 27080 lm | 4000K |
