Kubo12 Recessed Walkable ground recessed luminaire
Ground recessed luminaire, walkable up to 1000Kg. Equipped with secondary optics for different light distributions, useful for grazing lighting of facades and architectural elements, it is available with monochromatic or in stand-alone version with COB LED powered at 230Vac . Dali dimmable on request with extra charge.
Installation tType
Inground Recessed
Body
Die-cast aluminium
Box
Stainless Steel SHEET AISI430F
Frame
Stainless Steel AISI316L
Screen
Tempered extra-clear glass
Seals
Closed-cell EPDM rubber
Screws
Stainless steel A2
Dimmer system
Not dimmable
Optik distribution
PMMA Lens

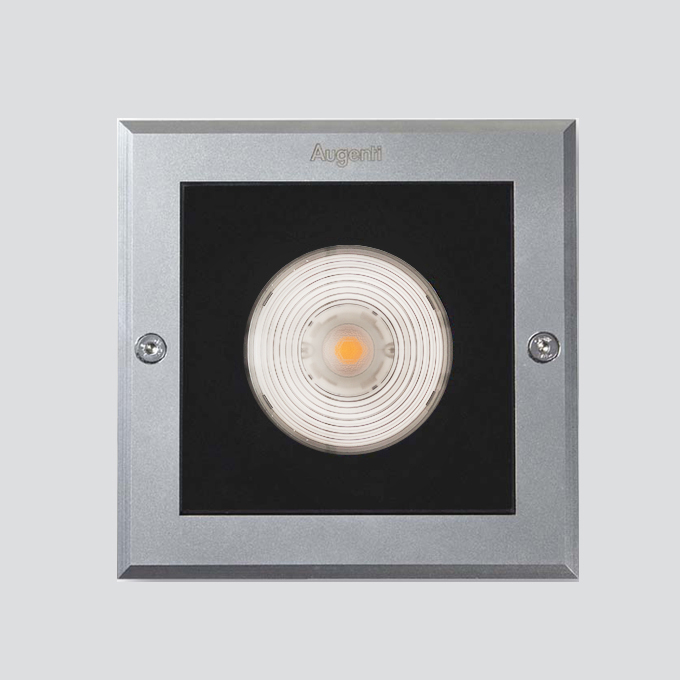

Walkable with built-in driver
| Code | Beam | Class | IP | W | Source | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|
| 2112R/WC35NB.99 |  Spot/10° |
I | 67 | 14W | 1586 lm | 1440 lm | 3000K |
| 2112R/WC35MB.99 |  Flood/38° |
I | 67 | 14W | 1586 lm | 1446 lm | 3000K |
| 2112R/WC35WB.99 |  Wide Flood/56° |
I | 67 | 14W | 1586 lm | 1332 lm | 3000K |
| 2112R/NC35NB.99 | Spot/10° |
I | 67 | 14W | 1650 lm | 1498 lm | 4000K |
| 2112R/NC35MB.99 | Flood/38° |
I | 67 | 14W | 1650 lm | 1504 lm | 4000K |
| 2112R/NC35WB.99 | Wide Flood/56° |
I | 67 | 14W | 1650 lm | 1386 lm | 4000K |

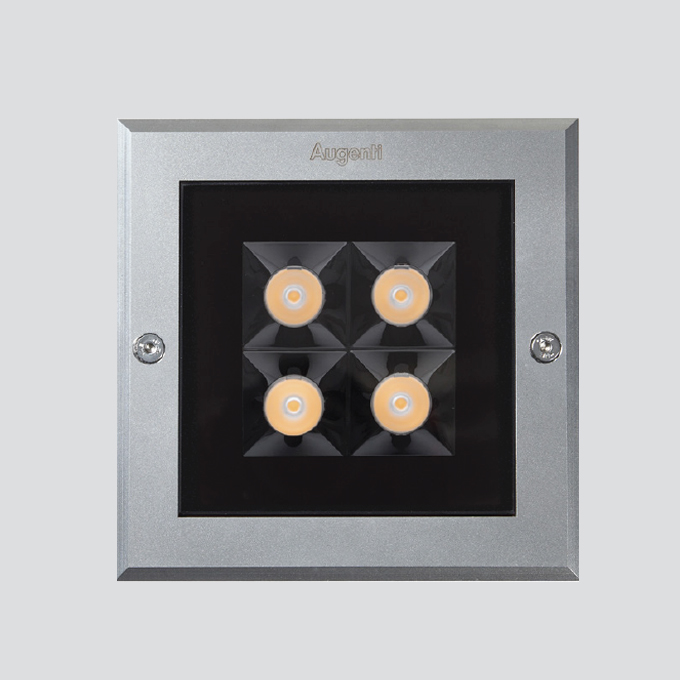

Walkable LED ARRAY with built-in driver
| Code | Beam | Class | IP | W | Source | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|
| 2112R/WR50NB.99 | Spot/20° |
I | 67 | 14W | 1700 lm | 1190 lm | 3000K |
| 2112R/WR50MB.99 | Flood/32° |
I | 67 | 14W | 1700 lm | 1190 lm | 3000K |
| 2112R/WR50WB.99 | Wide Flood/50° |
I | 67 | 14W | 1700 lm | 1190 lm | 3000K |
| 2112R/NR50NB.99 | Spot/20° |
I | 67 | 14W | 1770 lm | 1240 lm | 4000K |
| 2112R/NR50MB.99 | Flood/32° |
I | 67 | 14W | 1770 lm | 1240 lm | 4000K |
| 2112R/NR50WB.99 | Wide Flood/50° |
I | 67 | 14W | 1770 lm | 1240 lm | 4000K |
